SEGA GAME GEAR CARTRIDGES

512KB Cart    8M-Bit Cart   Cart PCBs   -=GG PCB=-

Below you will find Photos of various SEGA Game Gear cartridges and their inner Circuit Boards. There are various types of PCB's out there and also different manufacturers. I will outline the different features for each as best I can. If you have any SEGA Game Gear games that are not shown here, Please email Photos of them to me at robotics AT digital-circuitry.com and I will add them to my page. Please have "GameGear Cartridge Photos" as the email Subject. I will ask that the Photos be of the same High quality resolution as the photos posted on this page. They must aslo be cropped straight and in perfect focus. Please include Photos of the Cartridge Enclosure, Cartridge PCB Front & Back.

Thanks Everyone!

***** PAGE UNDER CONSTRUCTION *****

TO BE UPDATED....

8M-BIT GAME GEAR CARTRIDGES

Game Name: Sonic Blast
Cartridge Memory size: 8M-Bit
ROM ID: MPR-19071-S
PCB design Model: 171-7000A
Manufacturer: SEGA 1995

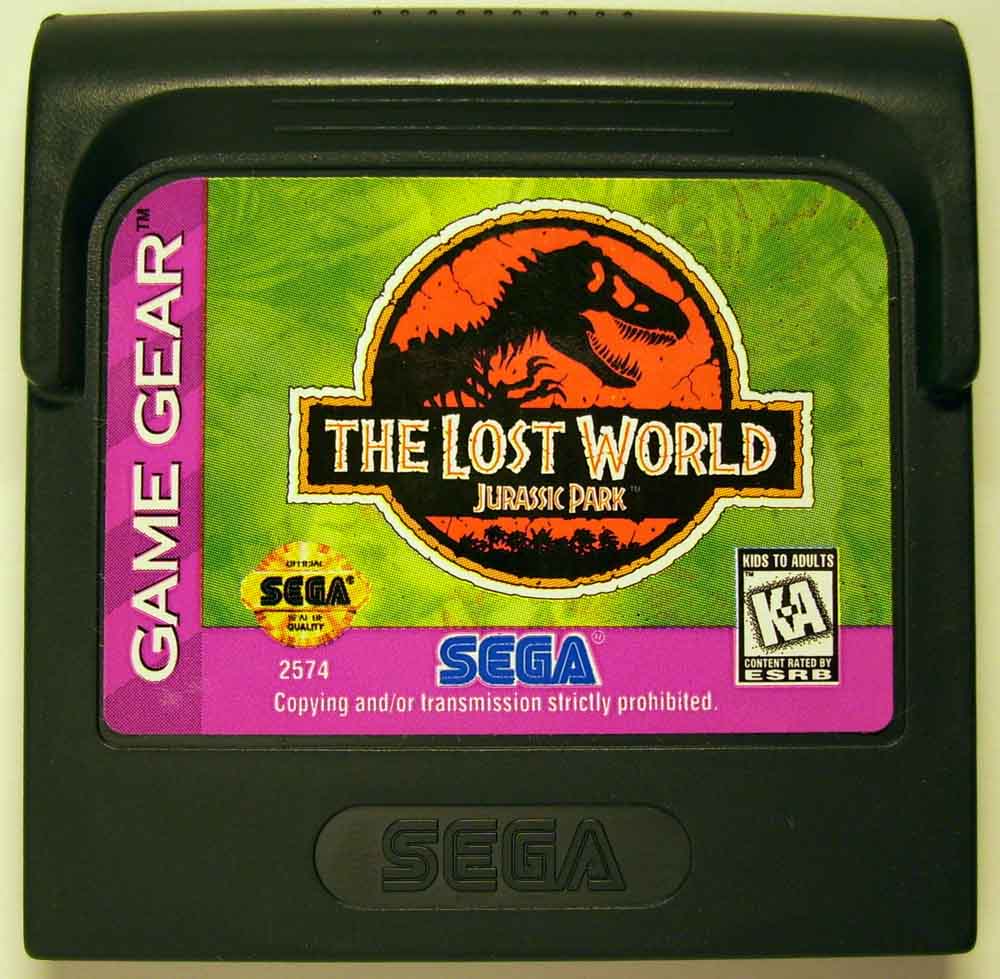

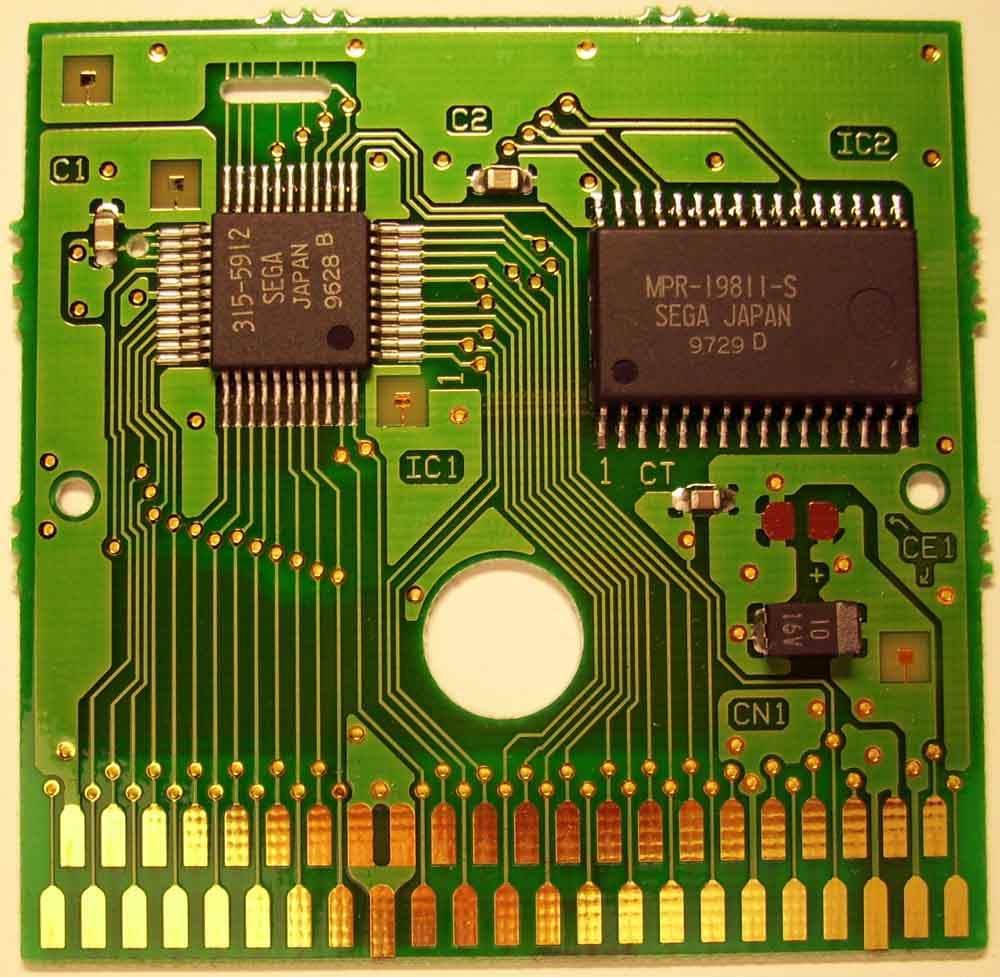

Game Name: Jurassic Park - The Lost World
Cartridge Memory size: 8M-Bit
Memory Mapper: 315-5912
ROM ID: MPR-19811-S
PCB design Model: 171-7000A
Manufacturer: SEGA 1995

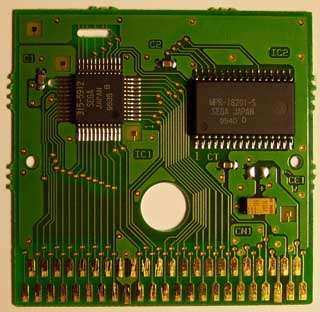

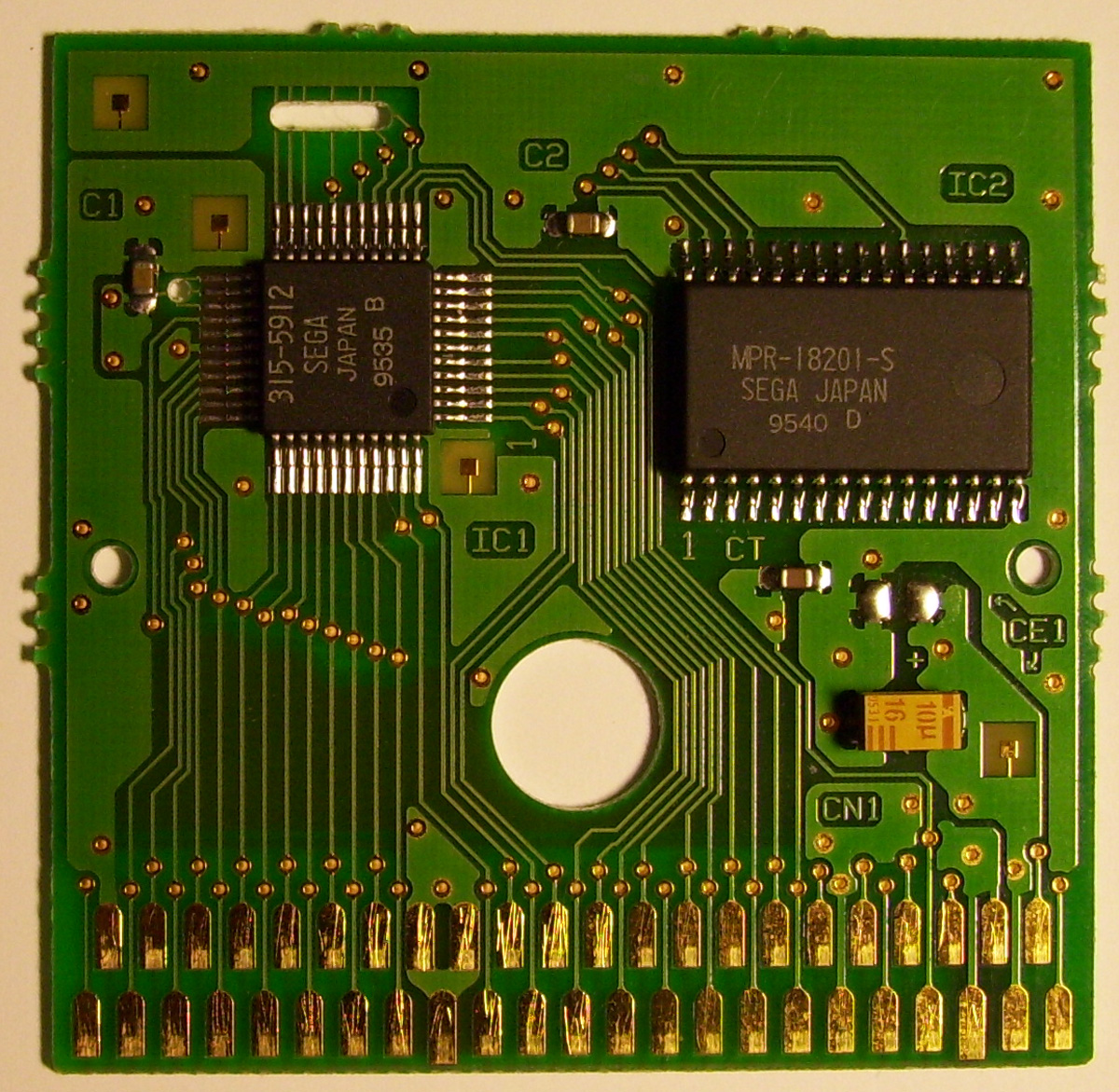

Game Name: Garfield - Caught in the Act
Cartridge Memory size: 8M-Bit
Memory Mapper: 315-5912
ROM ID: MPR-18201-S
PCB design Model: 171-7000A
Manufacturer: SEGA 1995

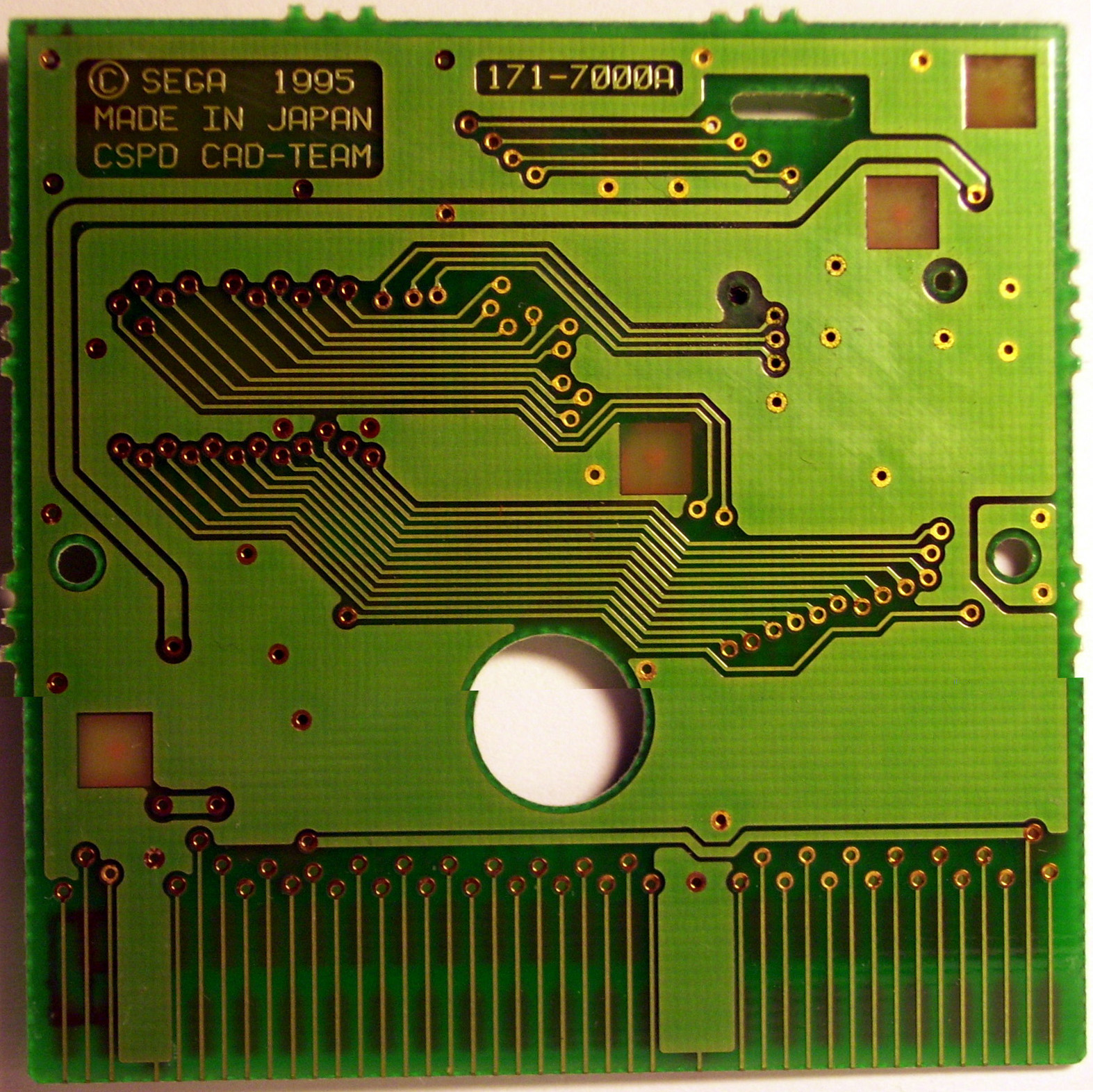

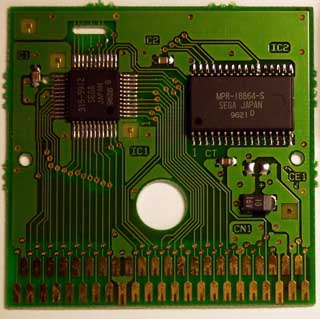

Game Name: Virtua Fighter - Animation
Cartridge Memory size: 8M-Bit
Memory Mapper: 315-5912
ROM ID: MPR-18864-S
PCB design Model: 171-7000A
Manufacturer: SEGA 1995



Game Name: Lunar Sanposuru Gakuen (JAPAN)
Cartridge Memory size: 8M-Bit
ROM ID: MPR-****
PCB design Model: 171-7000A
Manufacturer: SEGA 1995





GAME GEAR CARTRIDGE with RAM + Battery

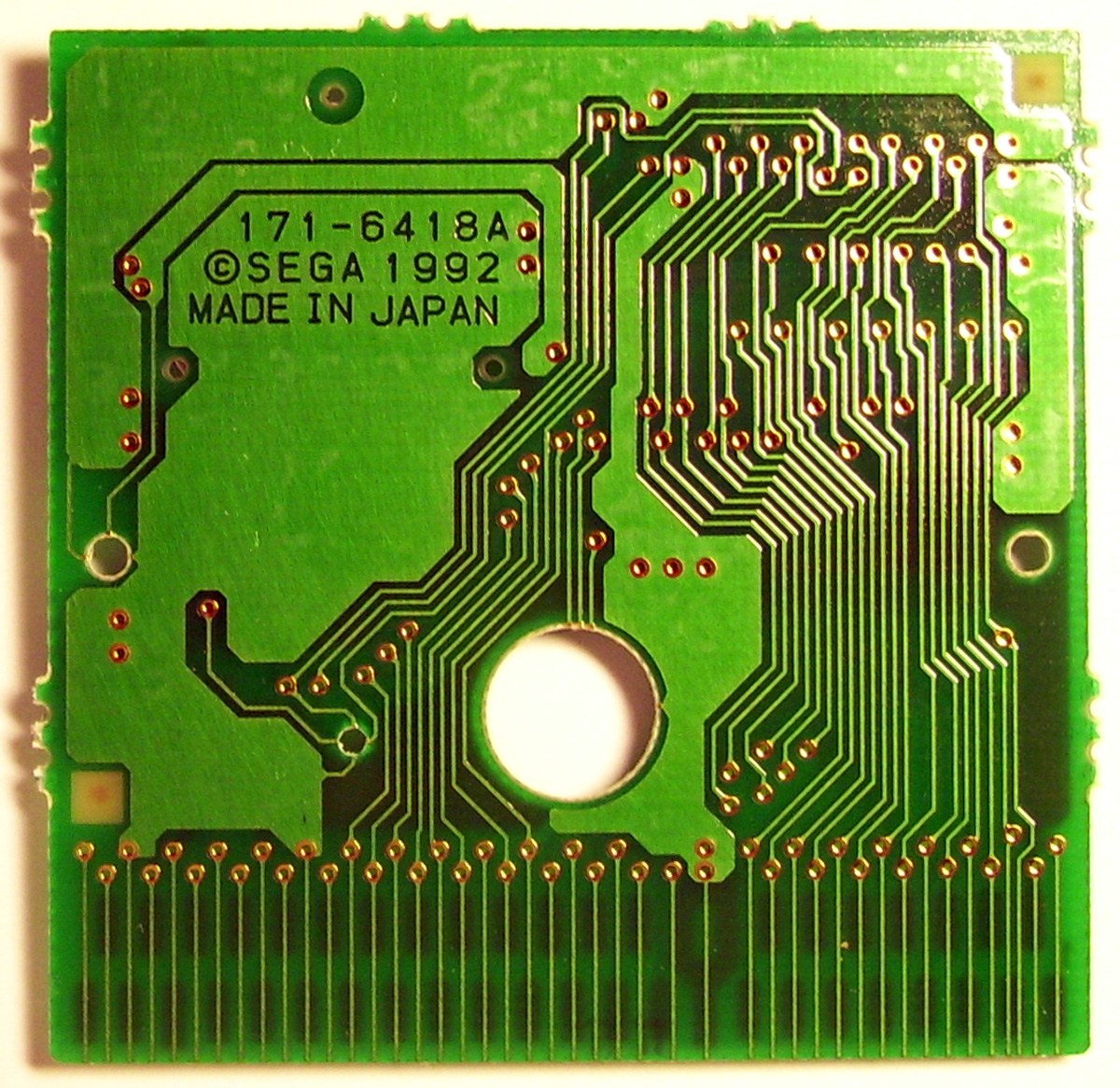

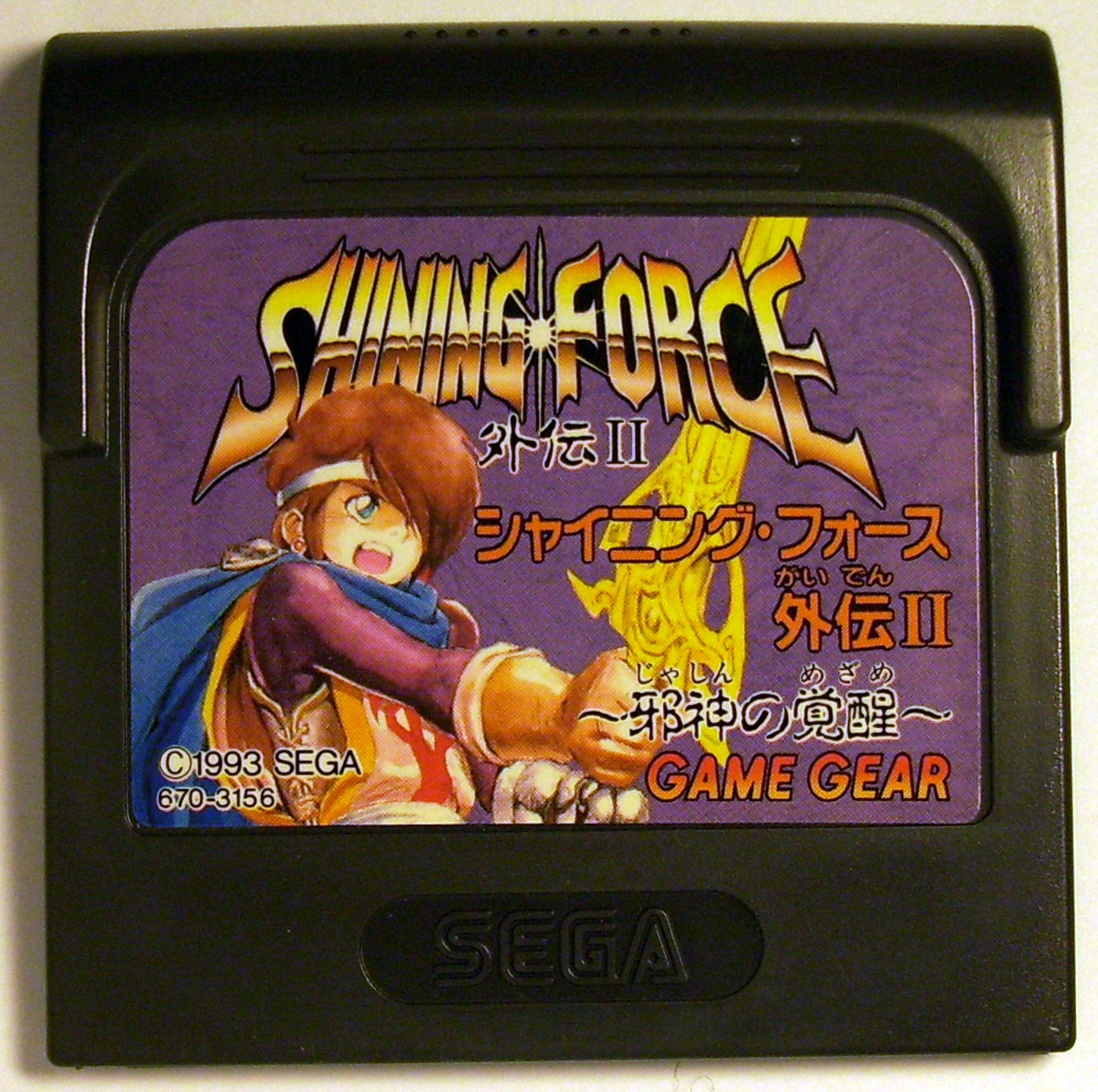

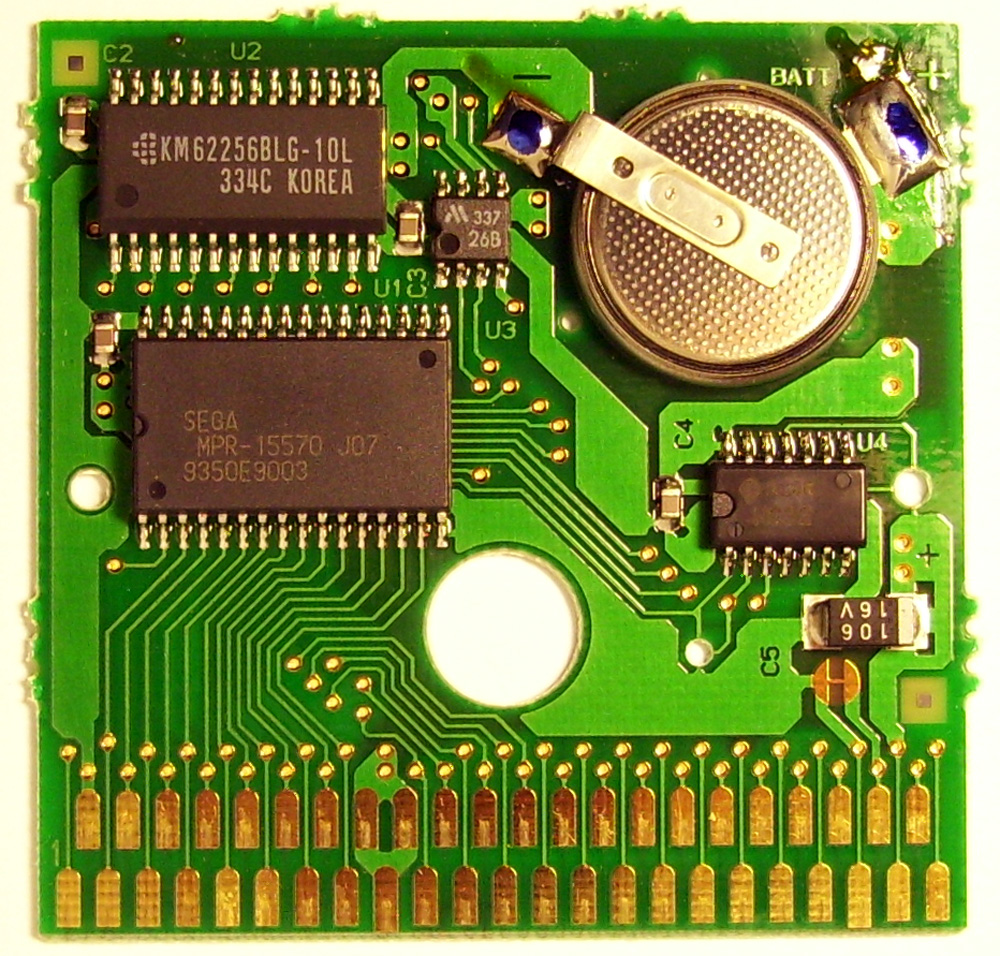

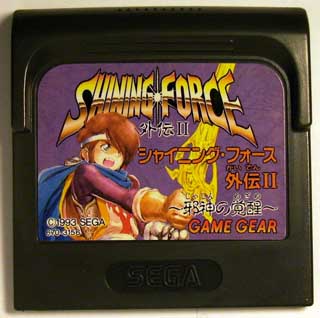

Game Name: Shinning Force II (JAPAN)
Cartridge Memory size:
4M-Bit
Memory Mapper:
ROM Integrated
ROM ID:
MPR-15570
RAM ID:
KM62256BLG-10L
PCB design Model:
171-6418A
Manufacturer:
SEGA 1992

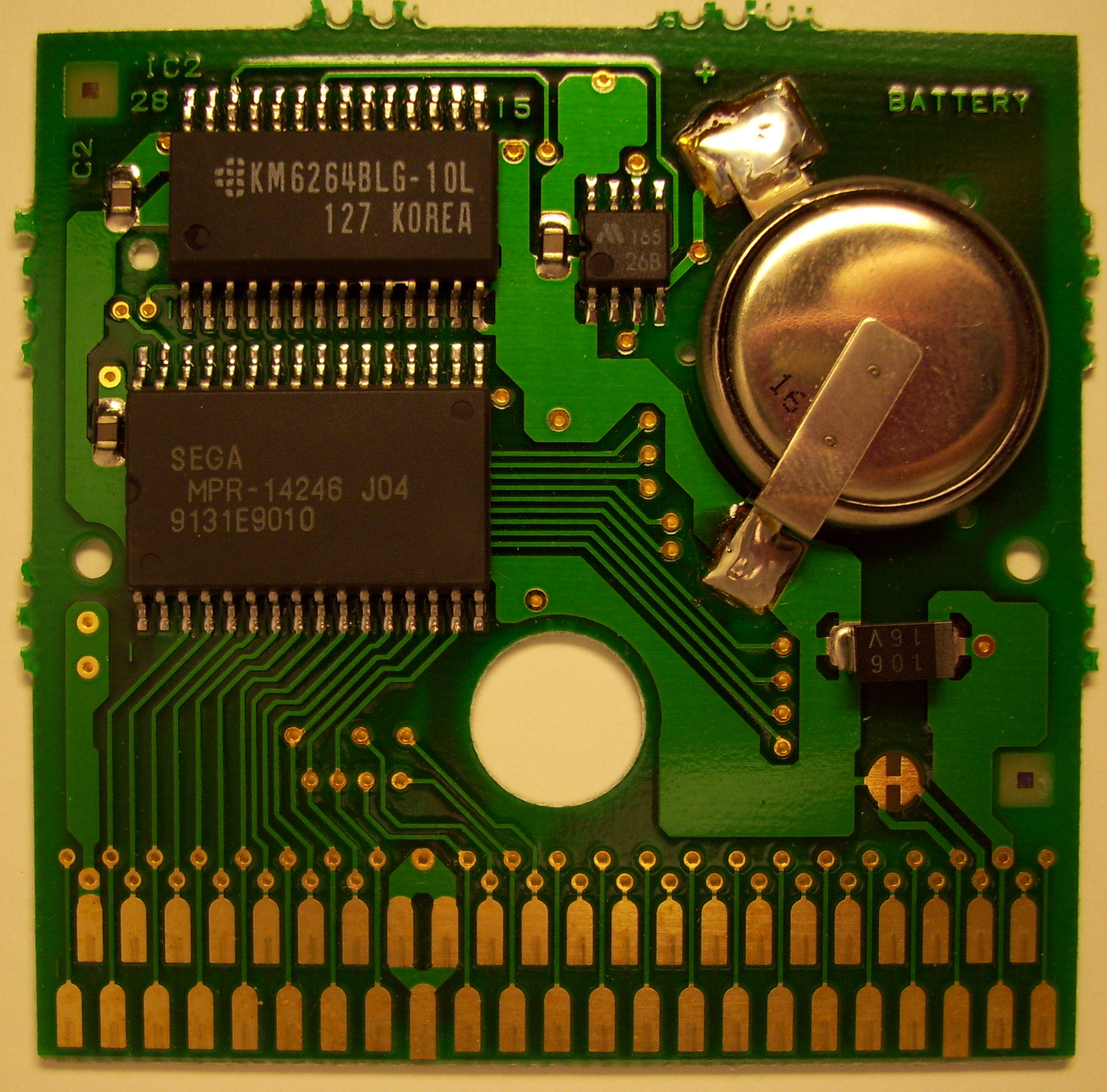

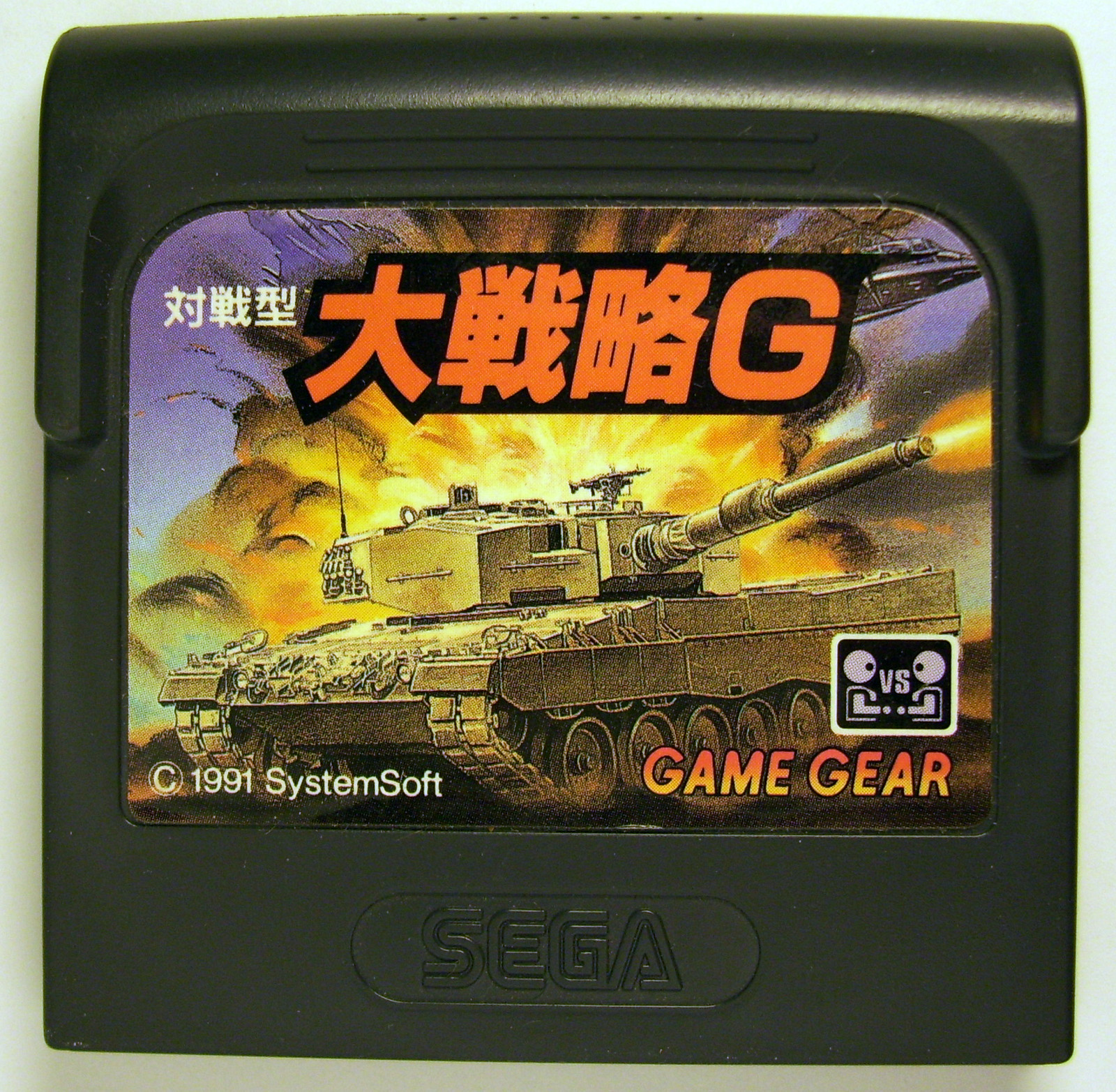

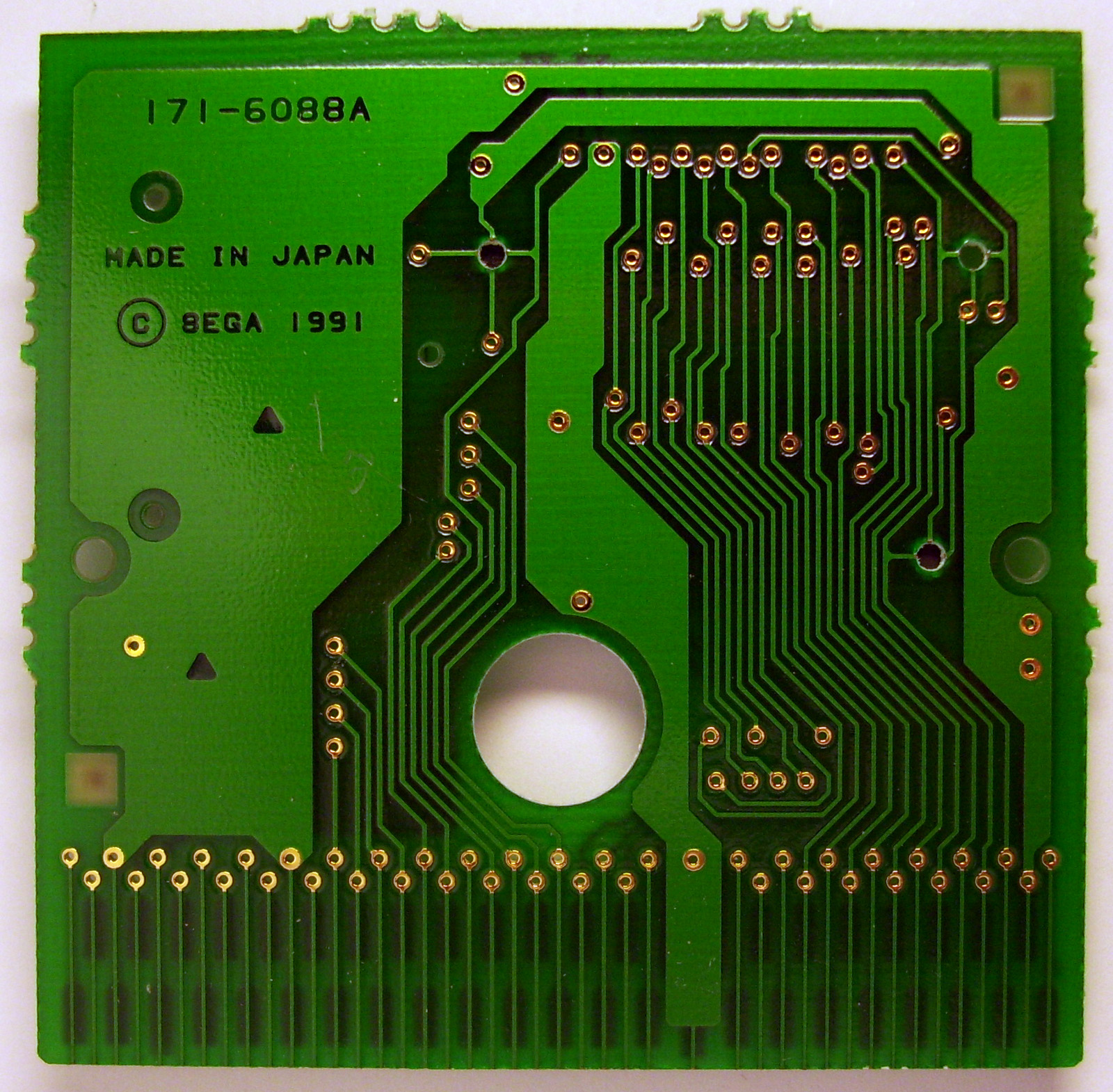

Game Name: Taisengata Daisenryaku (JAPAN)
Cartridge Memory size:
4M-Bit
Memory Mapper:
ROM Integrated
ROM ID:
MPR-14246
RAM ID:
KM6264BLG-10L
PCB design Model:
171-6088A
Manufacturer:
SEGA 1991



GAME GEAR CARTRIDGES by CODEMASTERS

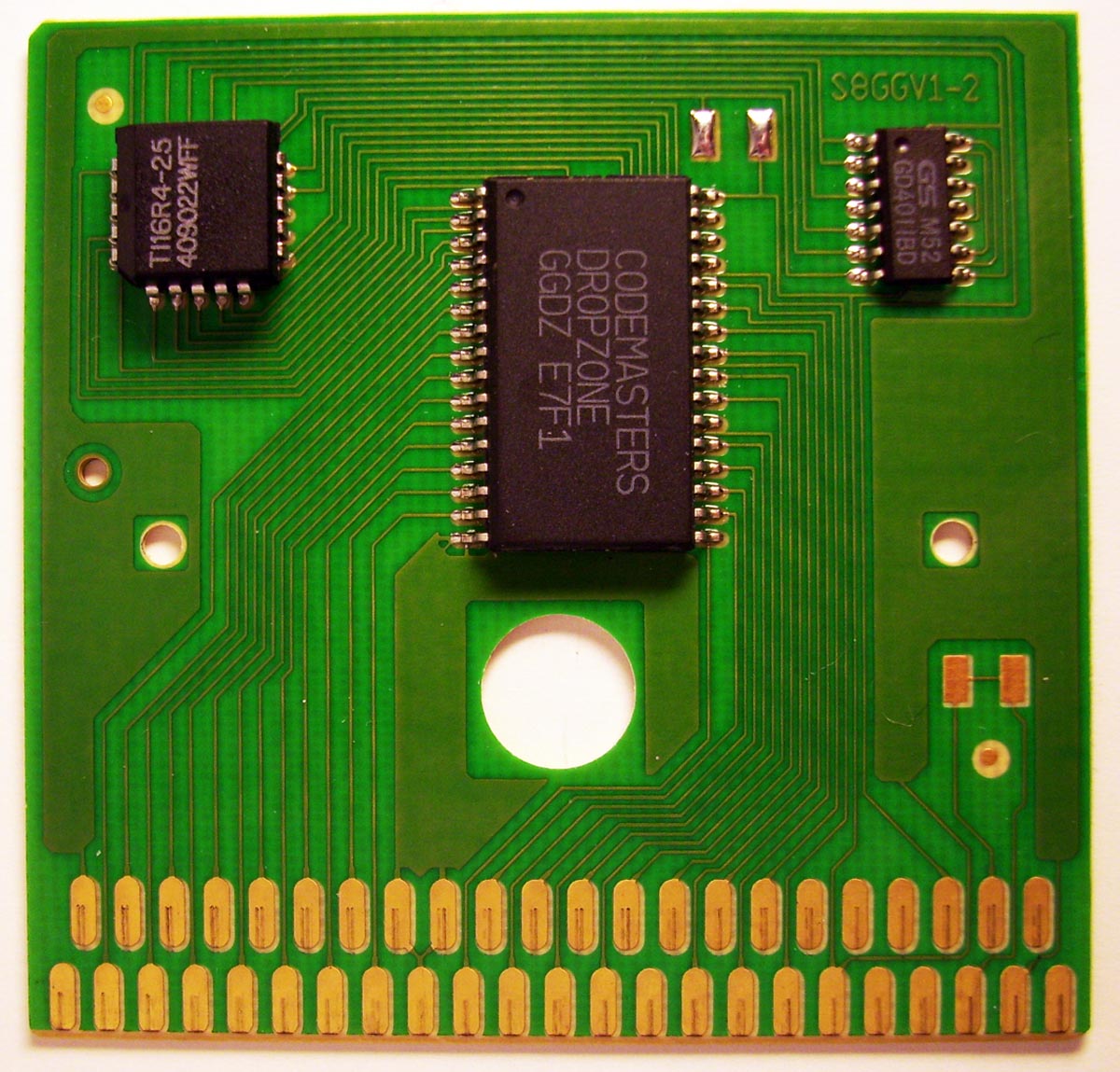

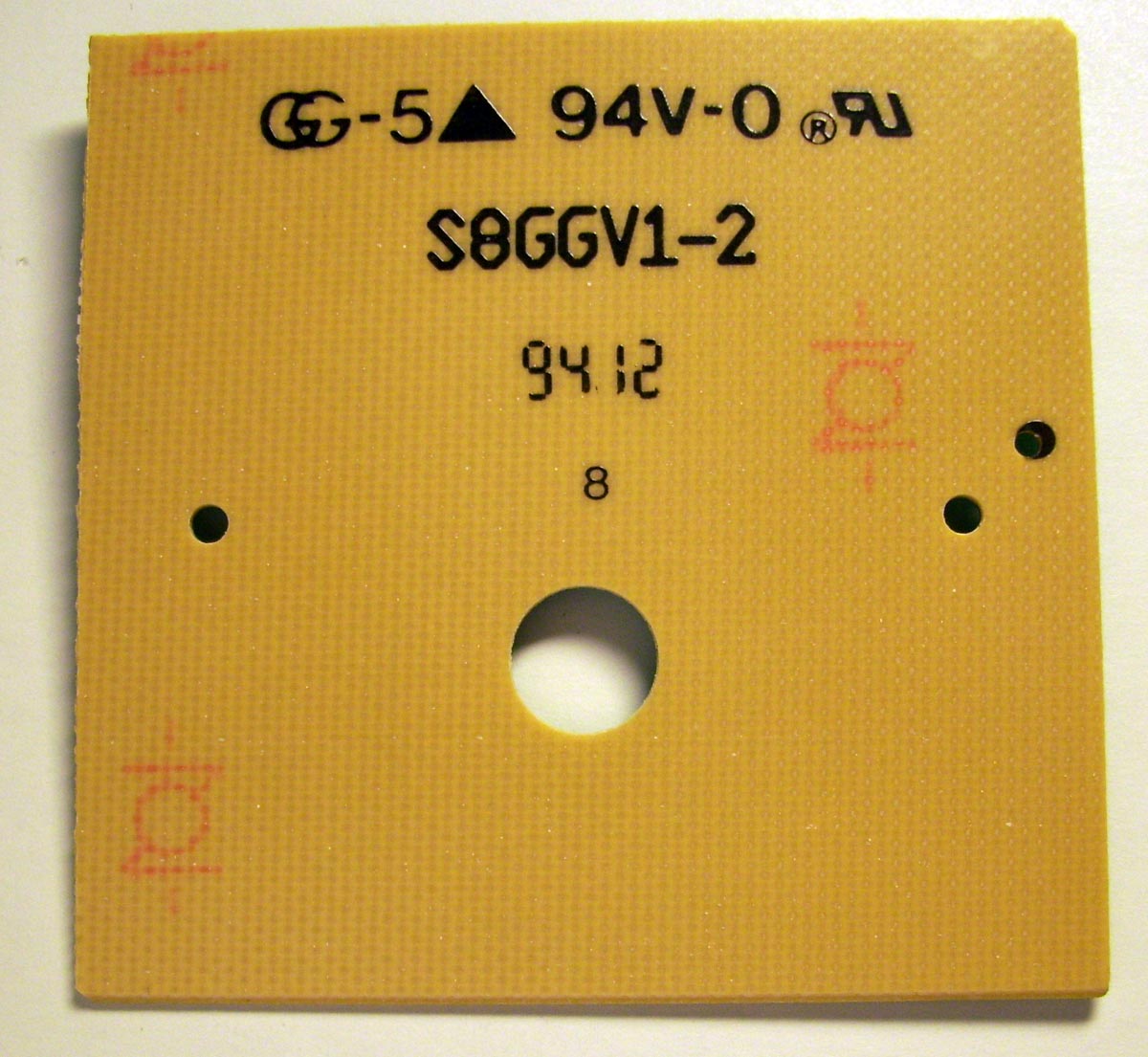

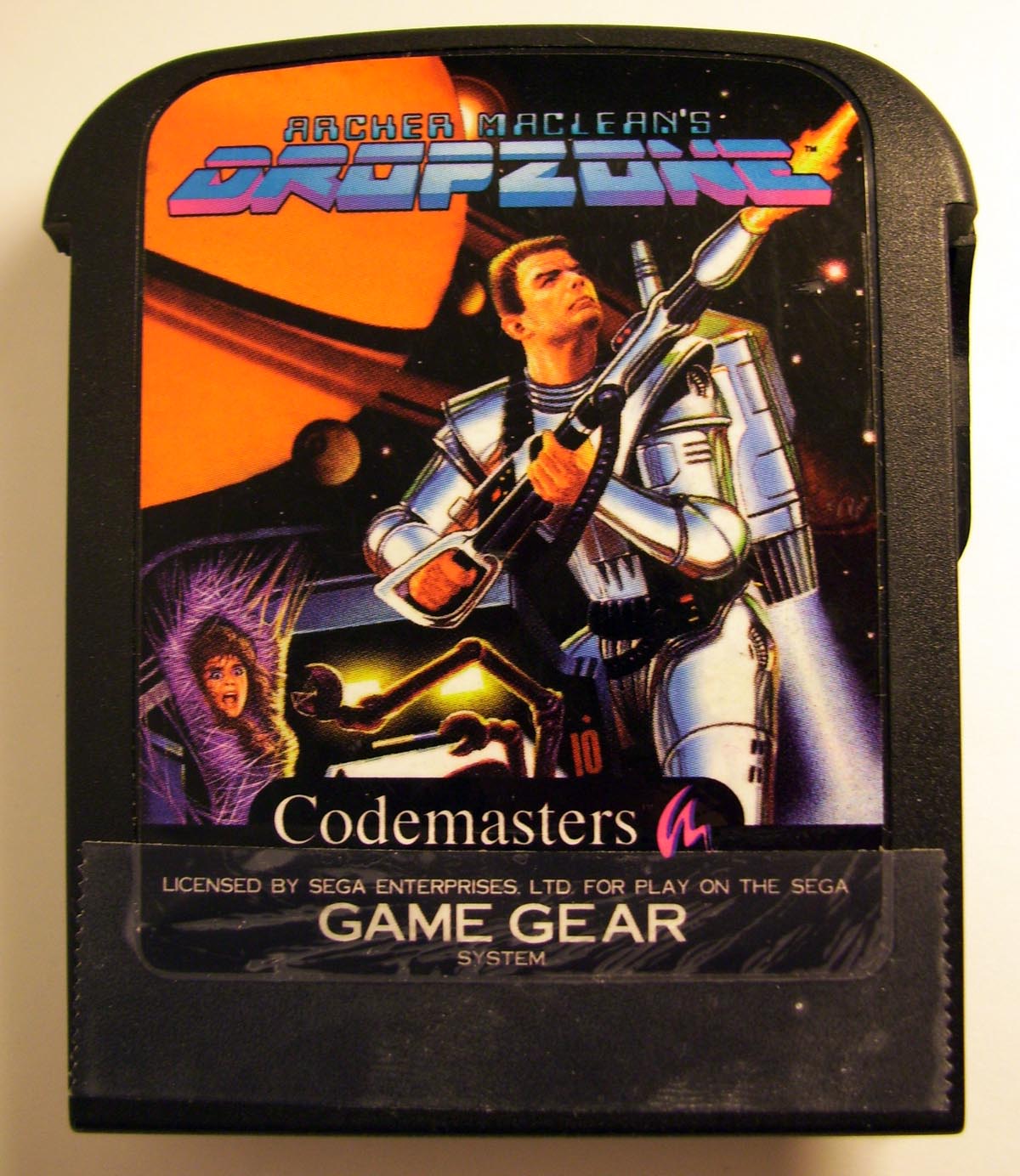

Game Name: Archer Maclean's DROPZONE
Cartridge Memory size:
4M-Bit
ROM ID:
CODEMASTERS DROPZONE GGDZ E7F1
Memory Mapper:
Custom PAL TI 16R4
PCB design Model:
S8GGV1-2 9412
Manufacturer:
CODEMASTERS





"BOOTLEG" GAME GEAR CARTRIDGES

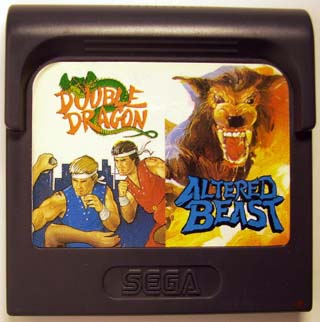

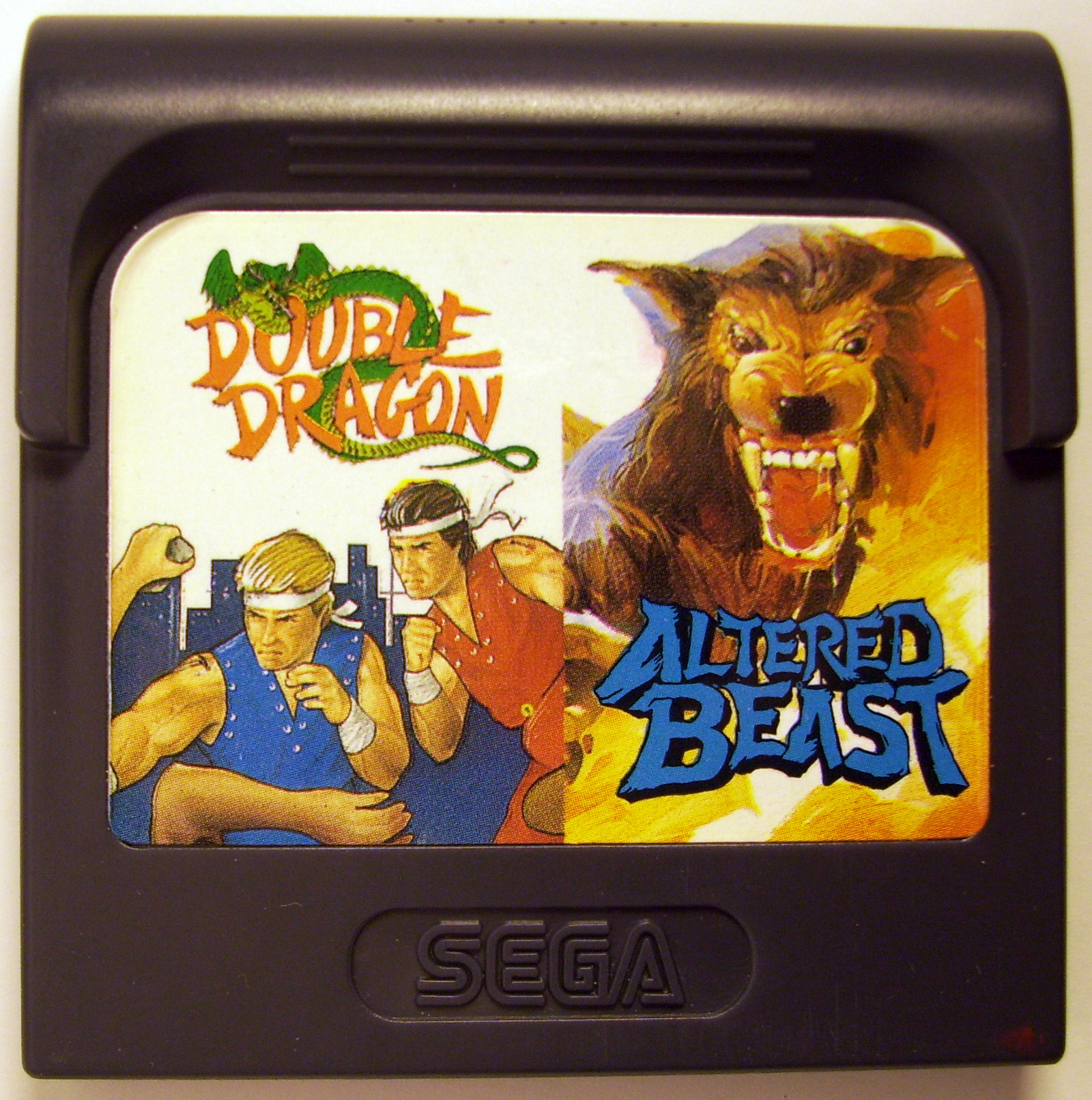

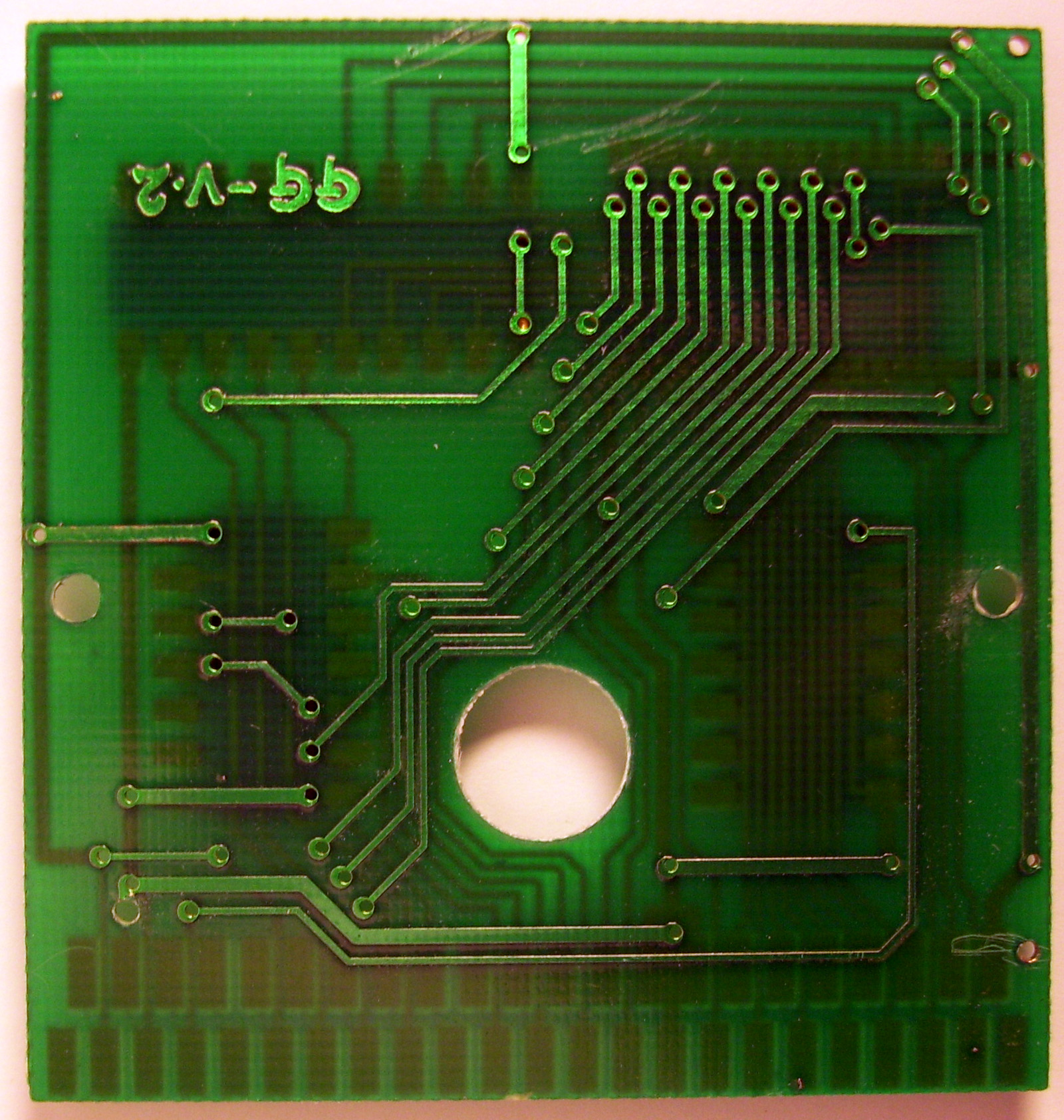

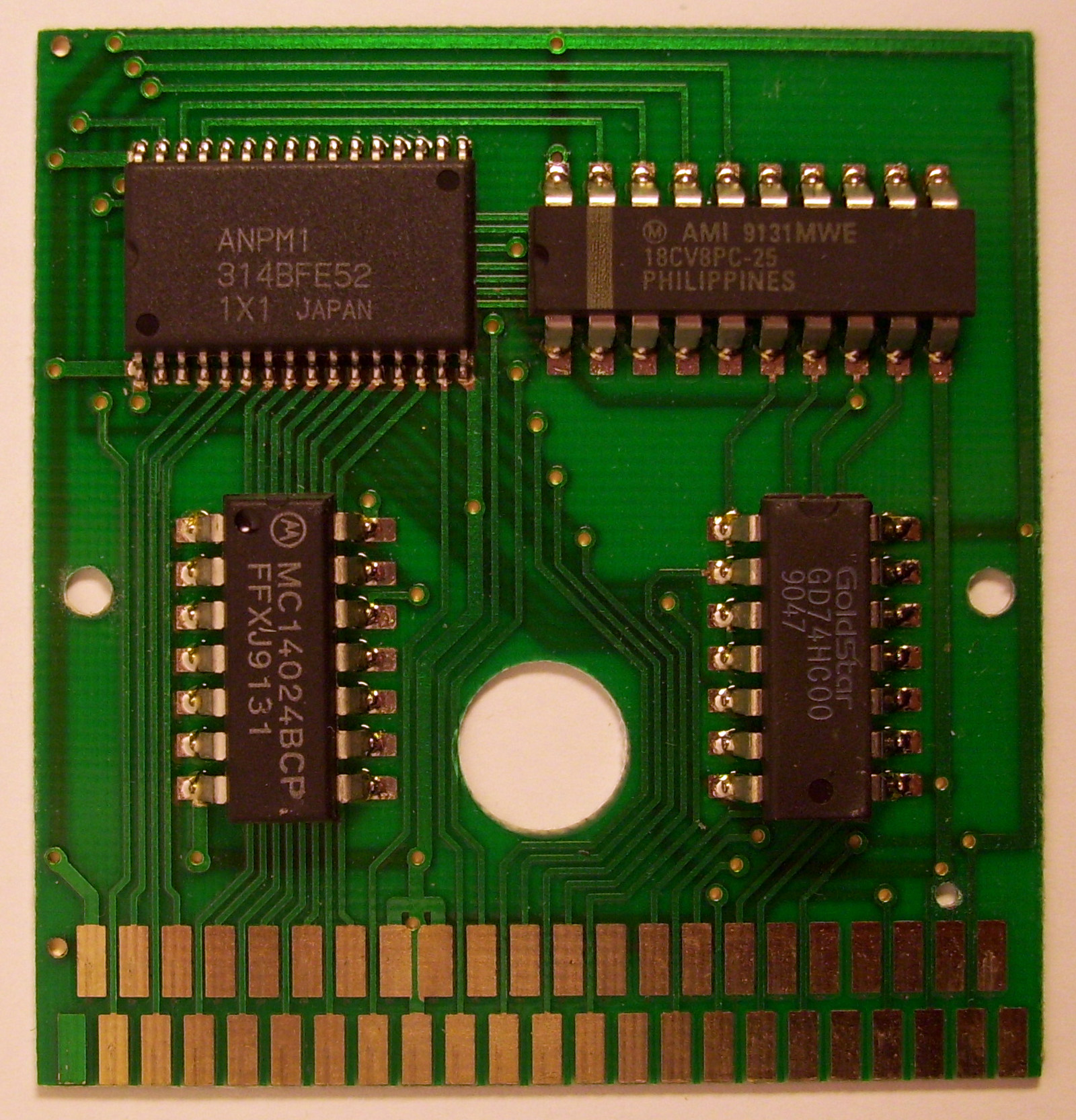

Game Name: Double Dragon / Altered Beast
Cartridge Memory size:
4M-Bit
ROM ID:
ANPM1 314BFE52
Memory Mapper:
Custom PAL 18CV8 + Discreet Components
PCB design Model:
GG-V.2
Manufacturer:
Third Party

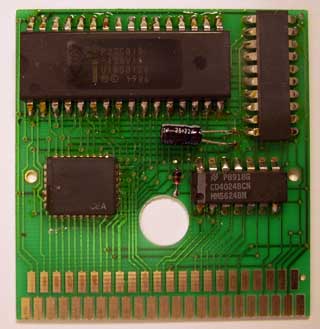

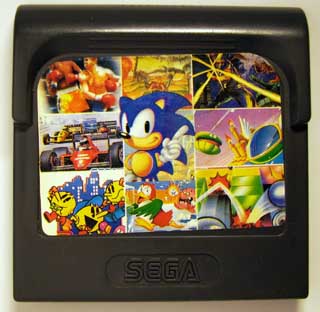

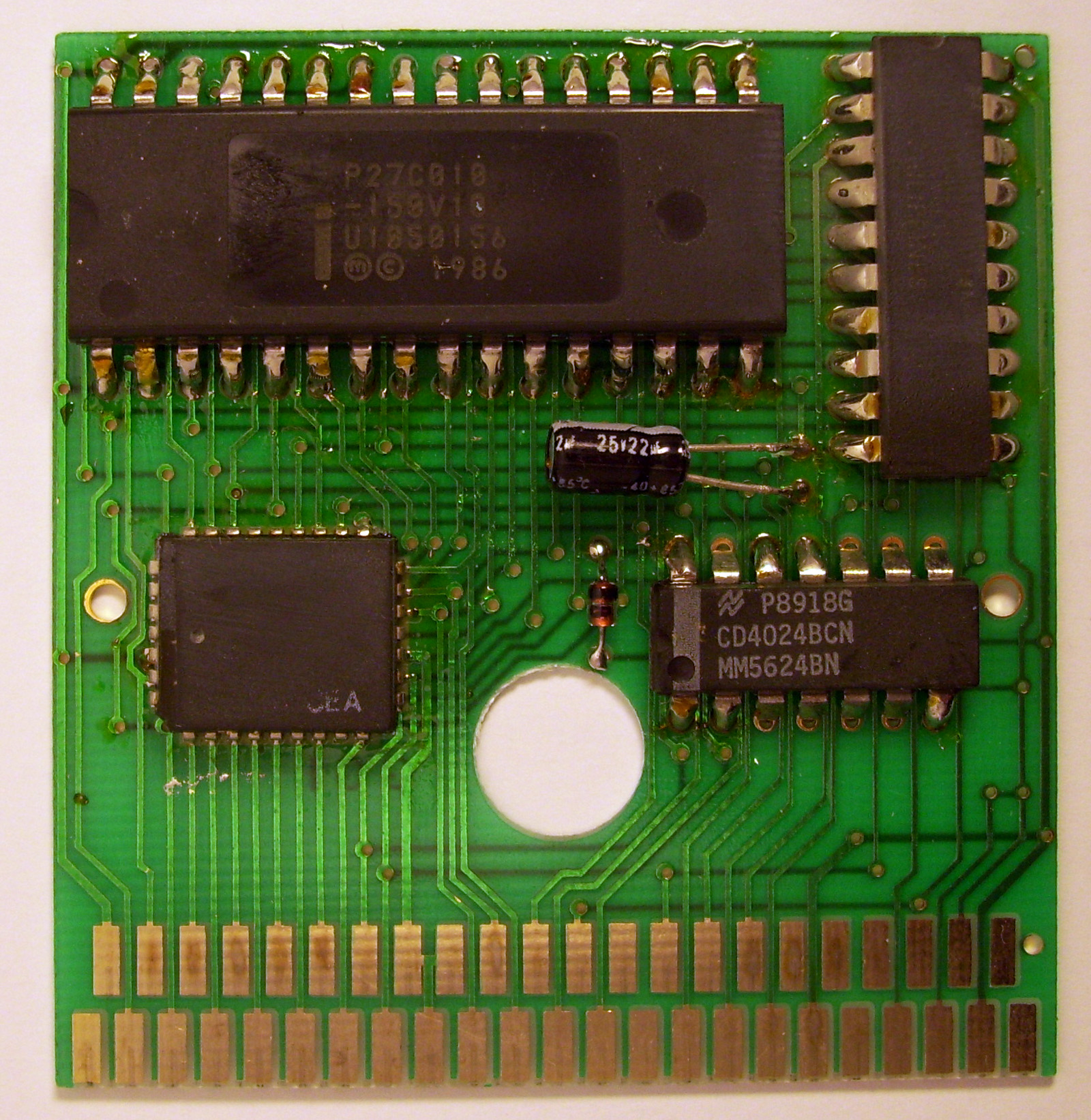

Game Name: Multi-Cart
Cartridge Memory size:
1M-Bit
ROM ID:
P27C010
Memory Mapper:
Custom CPLD/PAL + Discreet Components
PCB design Model:
GG-V.2
Manufacturer:
Third Party

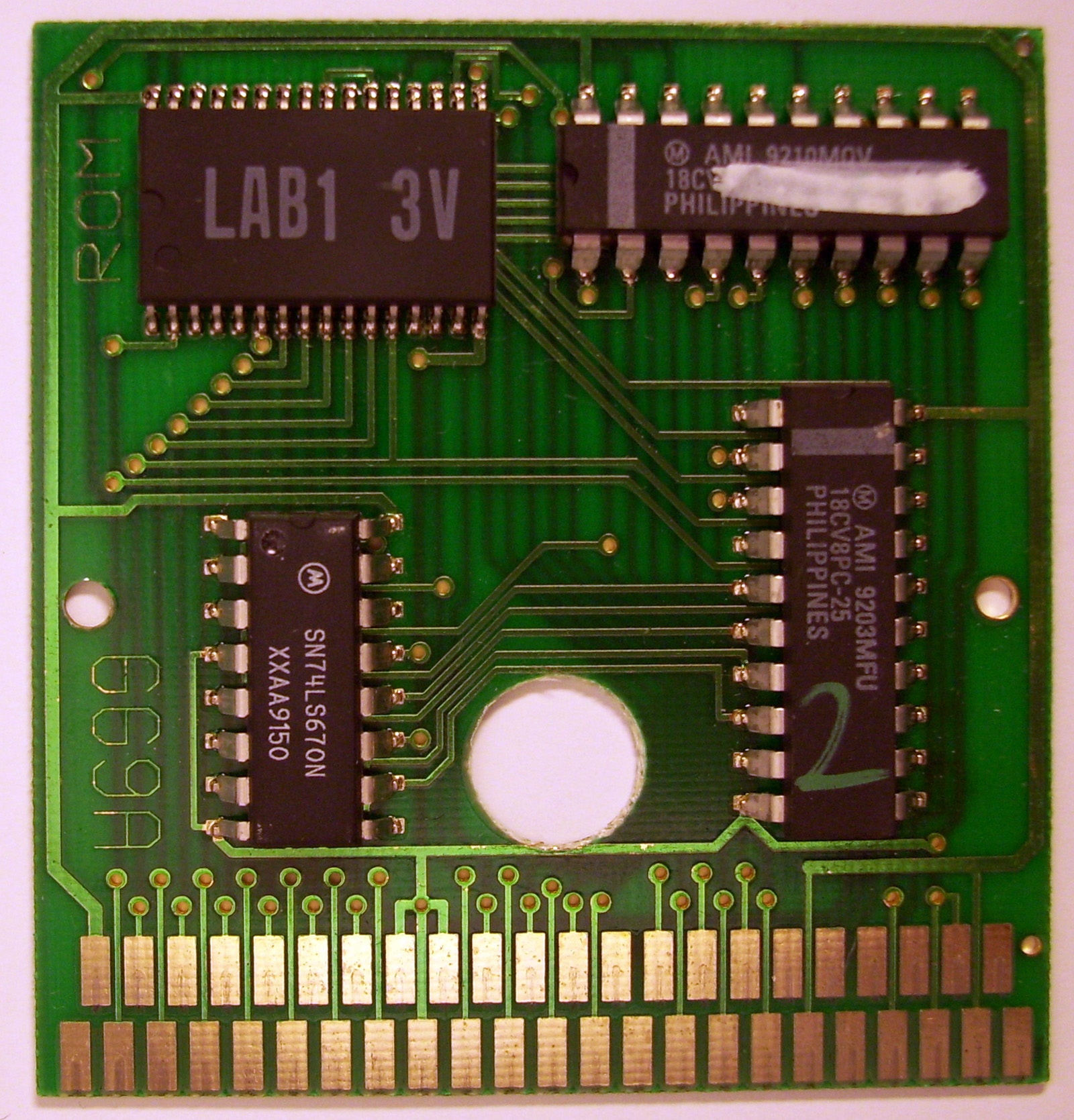

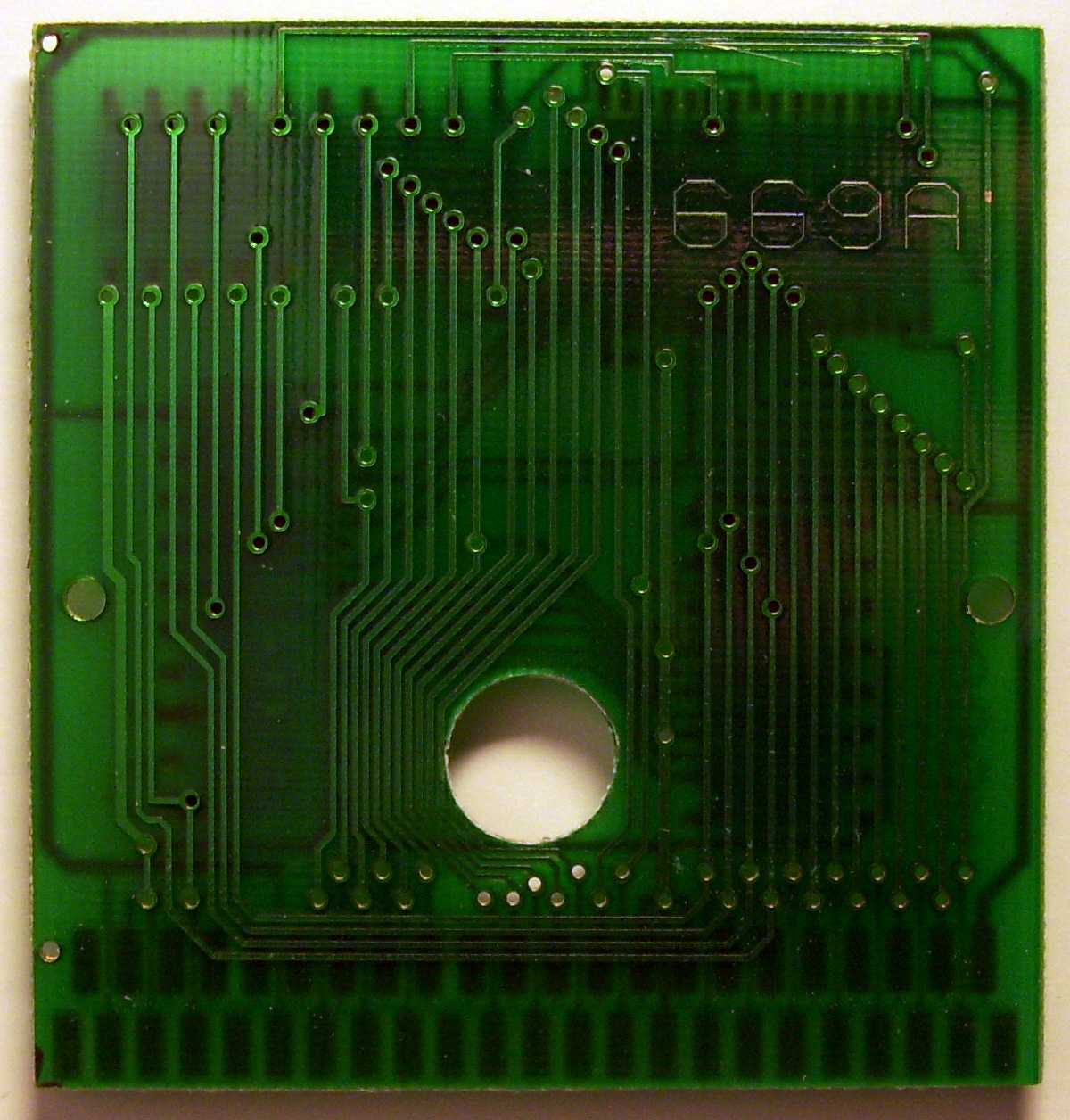

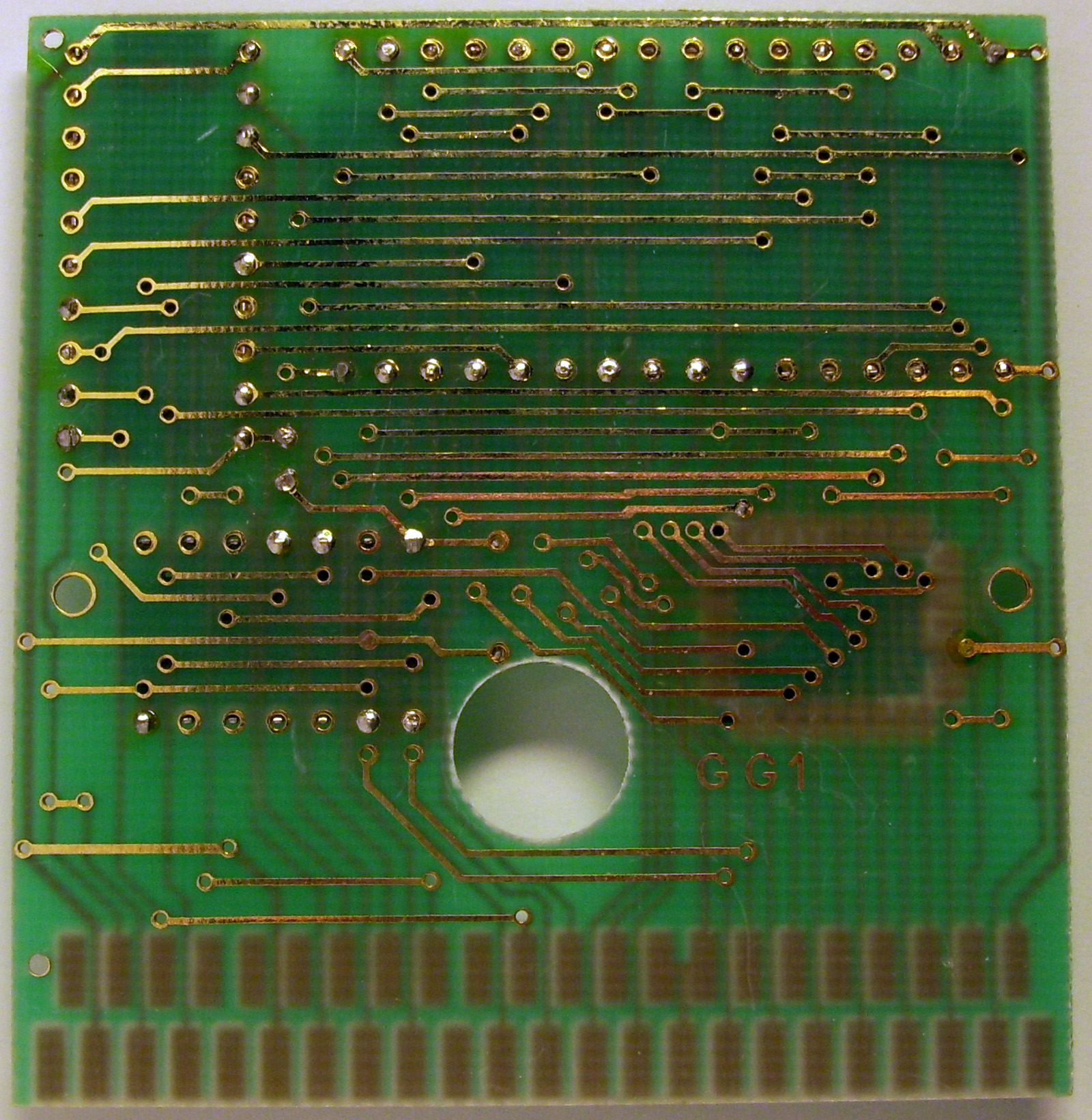

Game Name: Multi-Cart
Cartridge Memory size:
4M-Bit
ROM ID:
LAB1 3V
Memory Mapper:
Custom PAL 18CV8 + Discreet Components
PCB design Model:
669A
Manufacturer:
Third Party

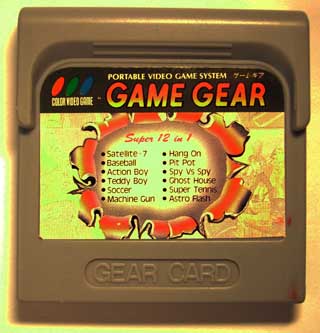

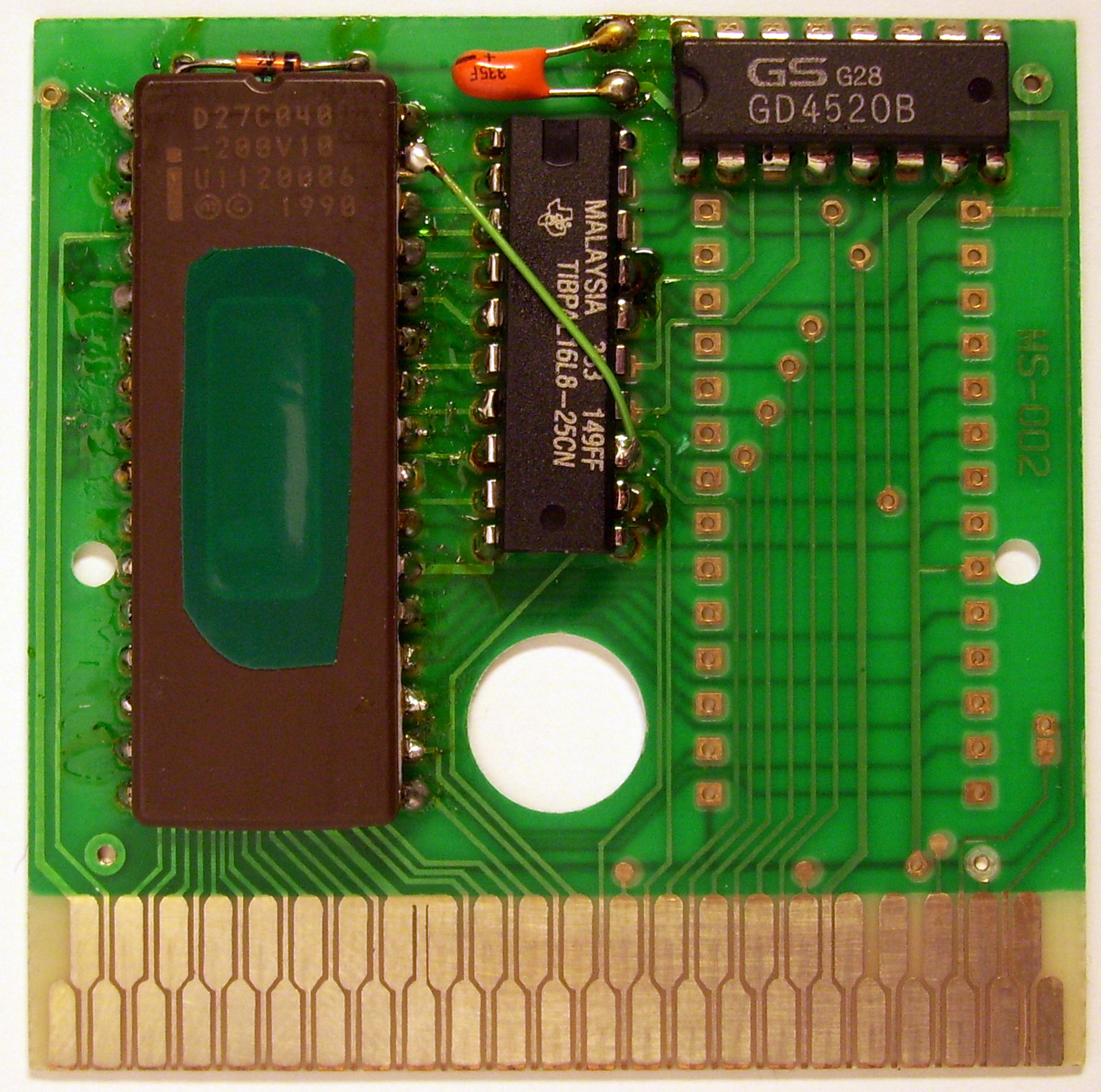

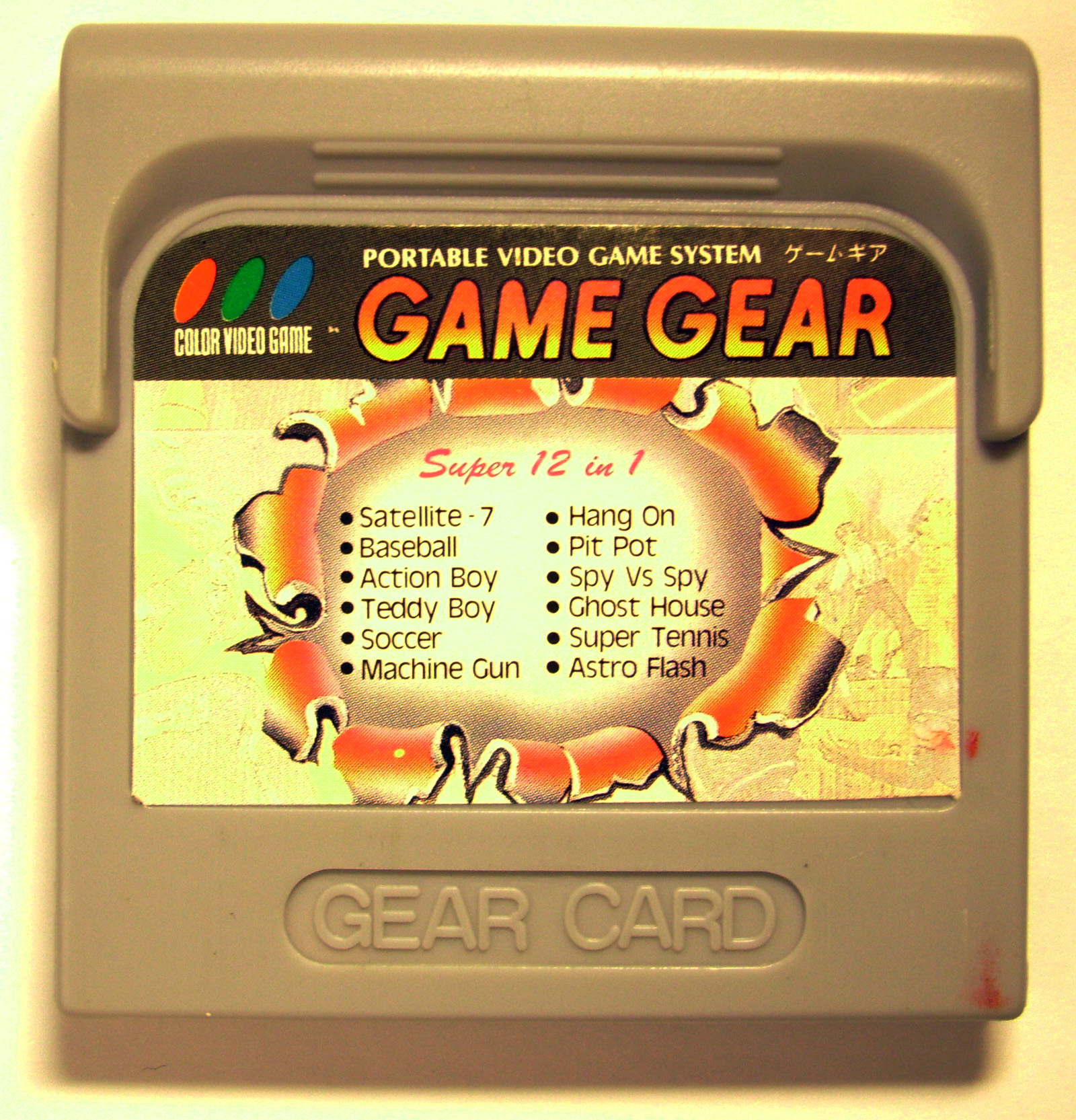

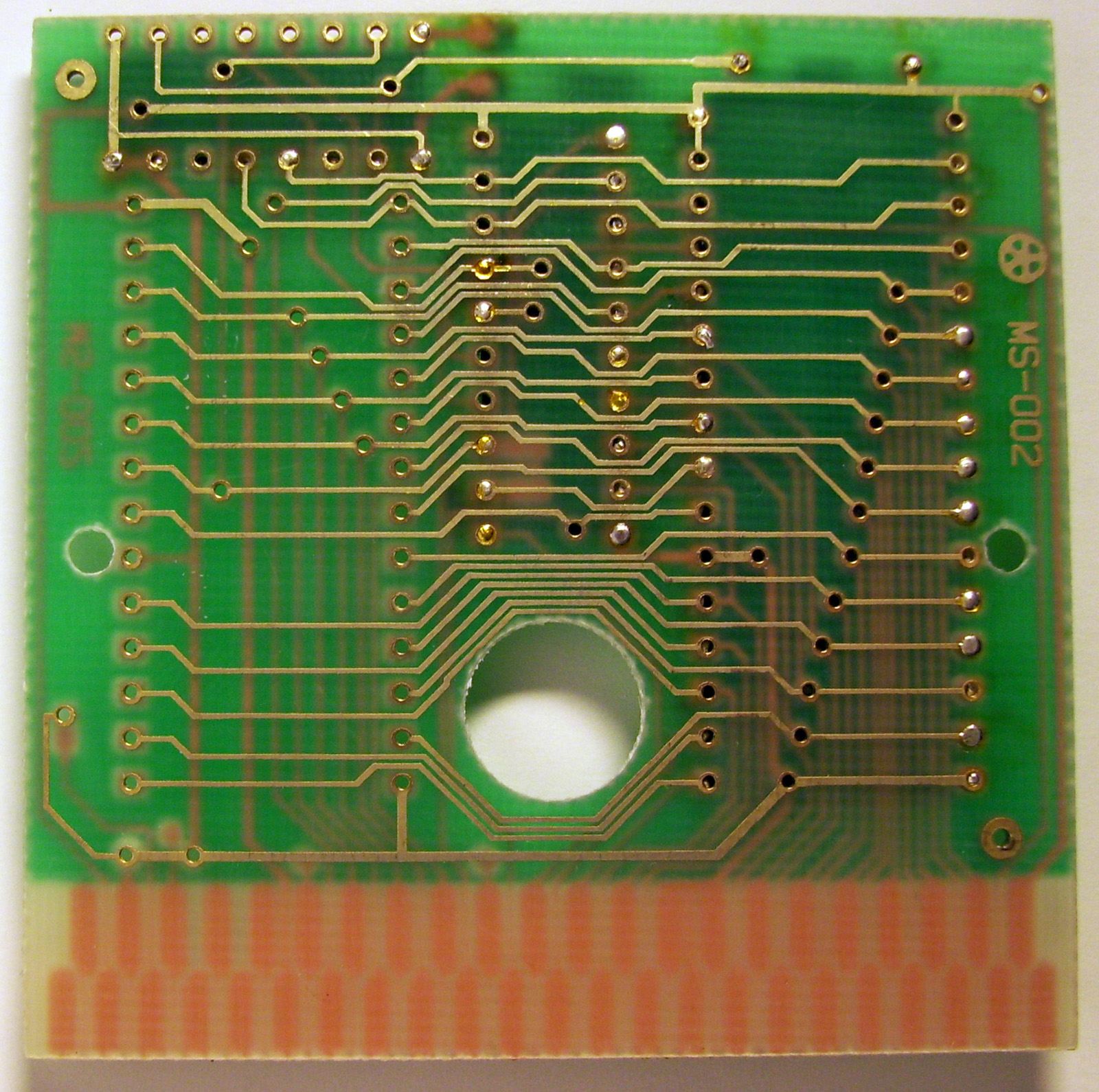

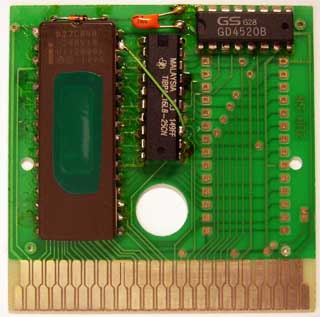

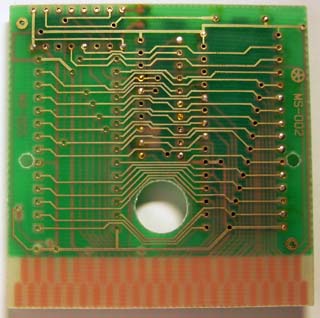

Game Name: Super 12 in 1 (Multi-Cart)
Cartridge Memory size:
4M-Bit
ROM ID:
D27C040 -200
Memory Mapper:
Custom PAL TIBPAL16L8-25CN + Discreet Components
PCB design Model:
MS-002
Manufacturer:
Third Party

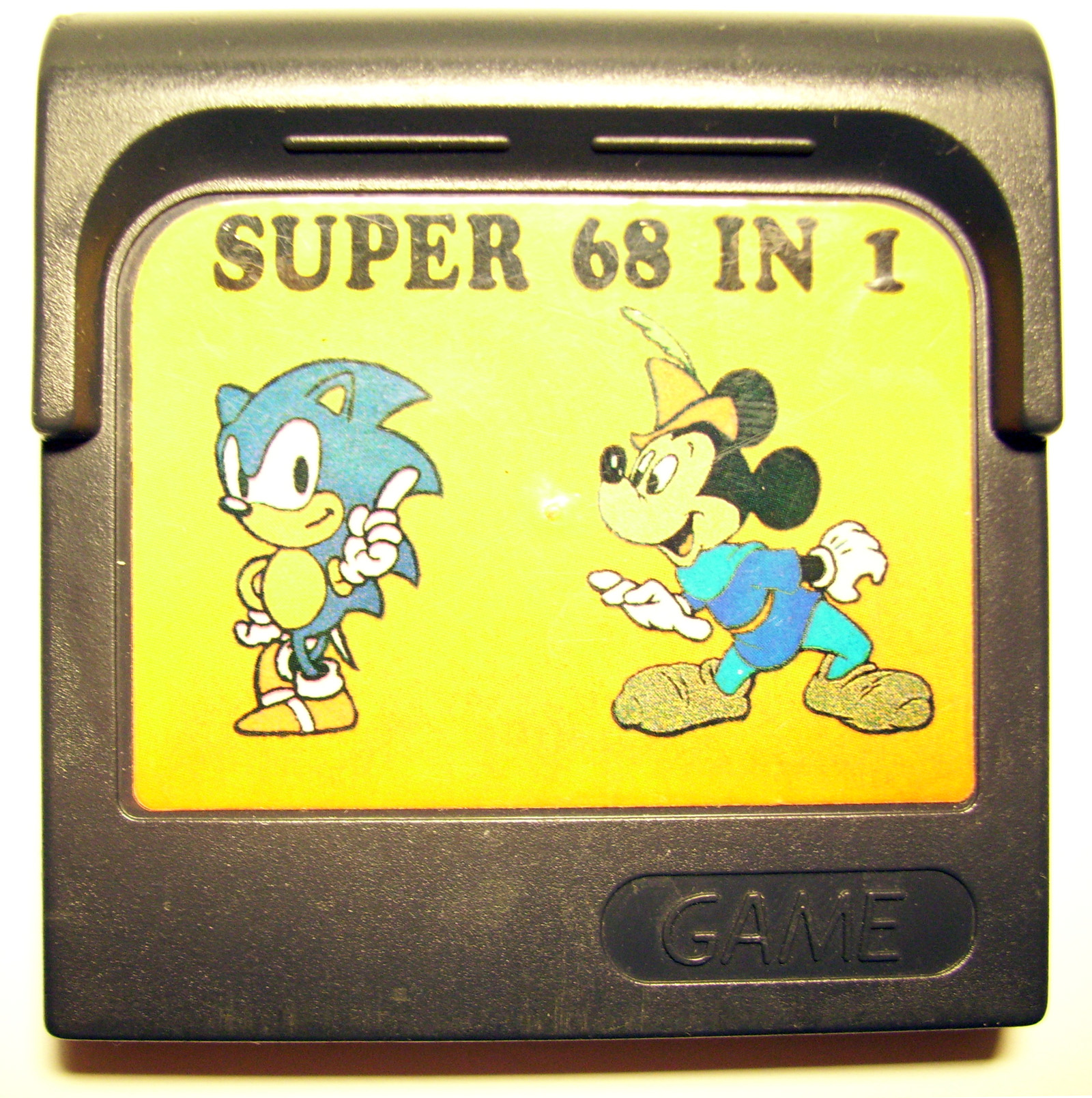

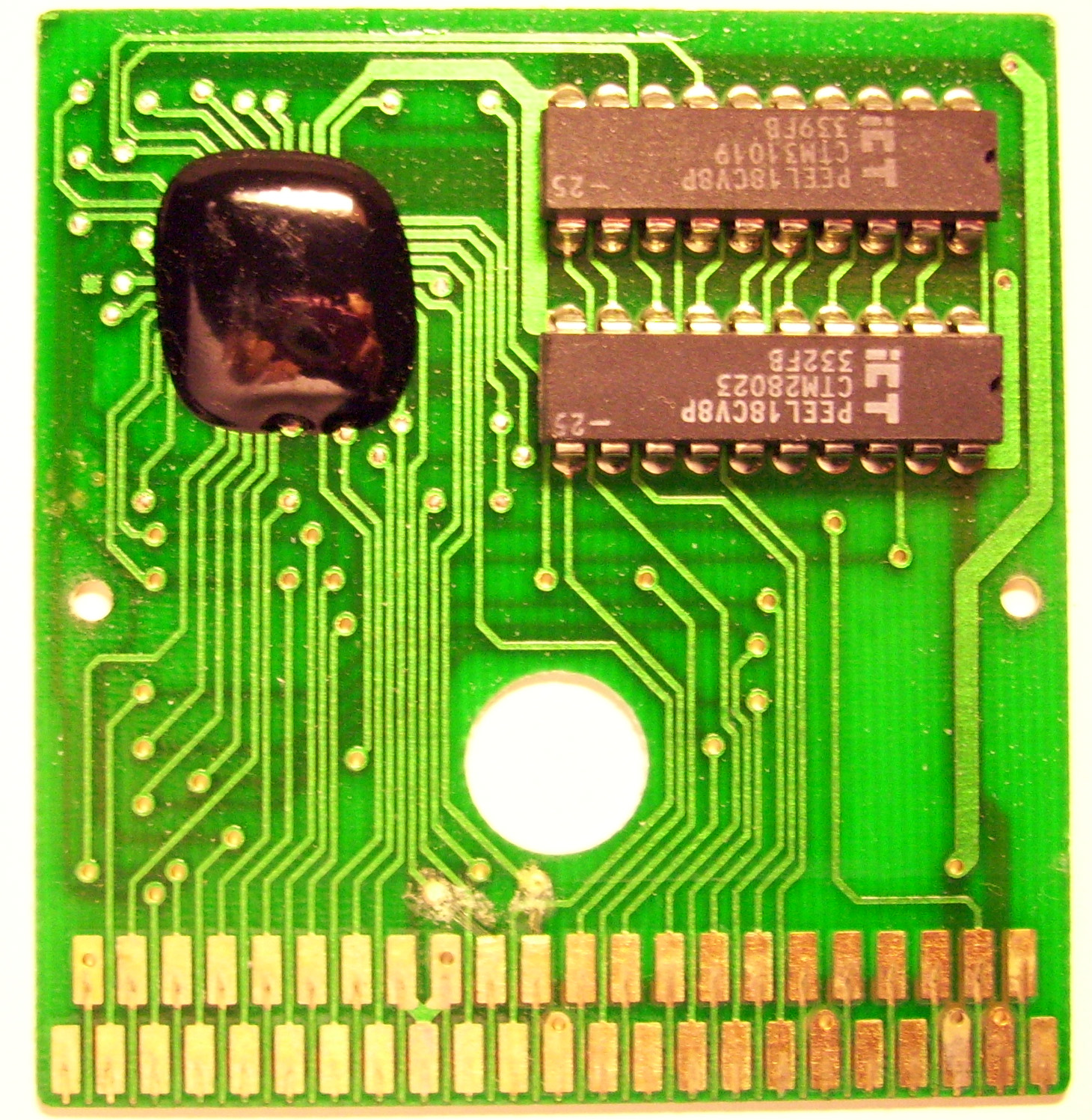

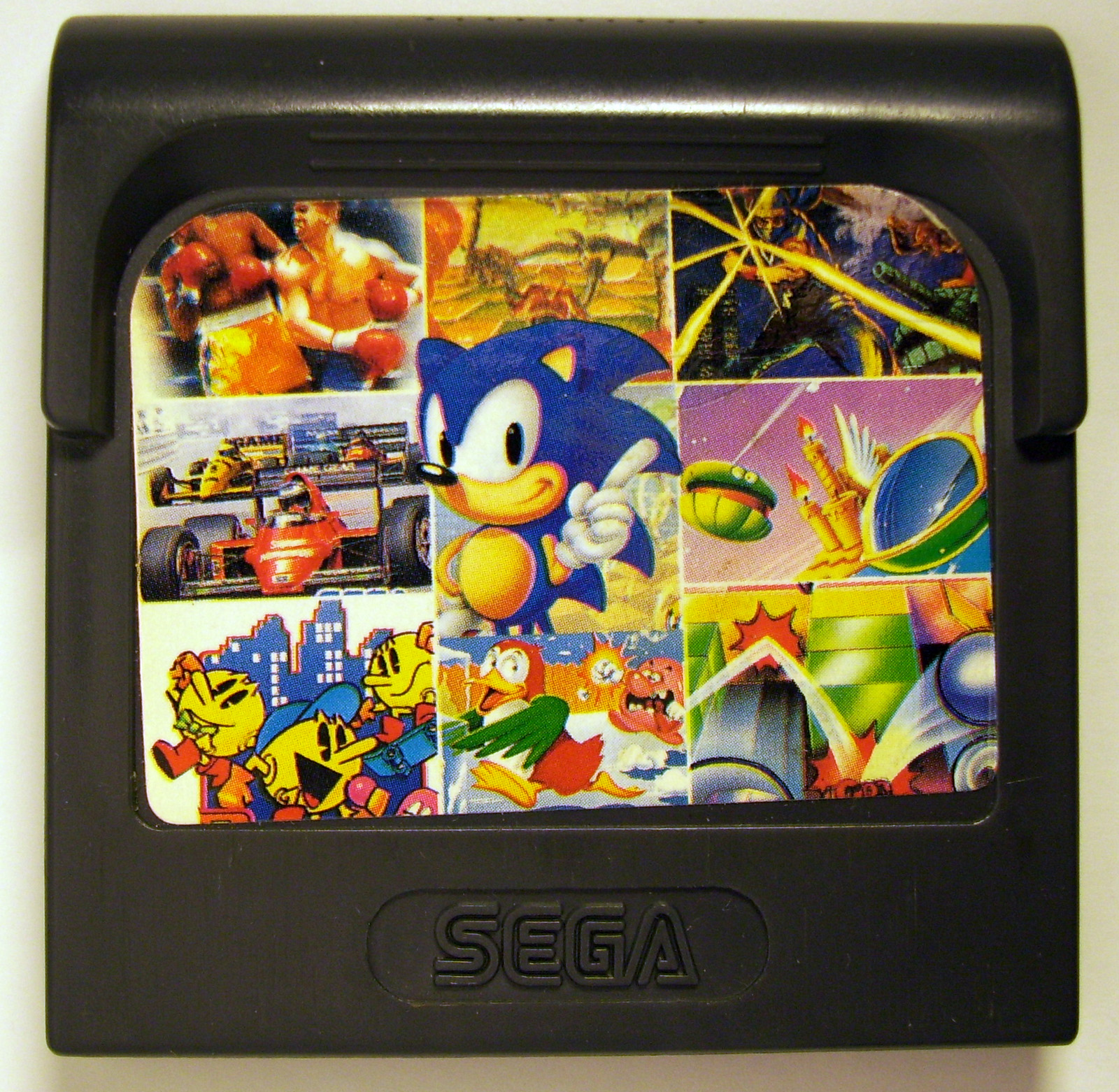

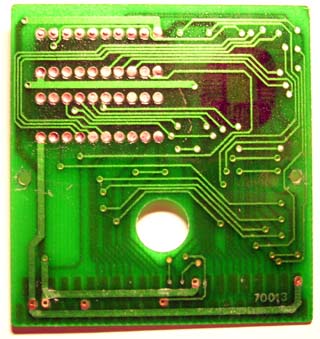

Game Name: Super 68 in 1 (Multi-Cart)
Cartridge Memory size:
Unkown
ROM ID:
Epoxy Coated Semi-Conductor
Memory Mapper:
Custom PAL PEEL18CV8 (x2)

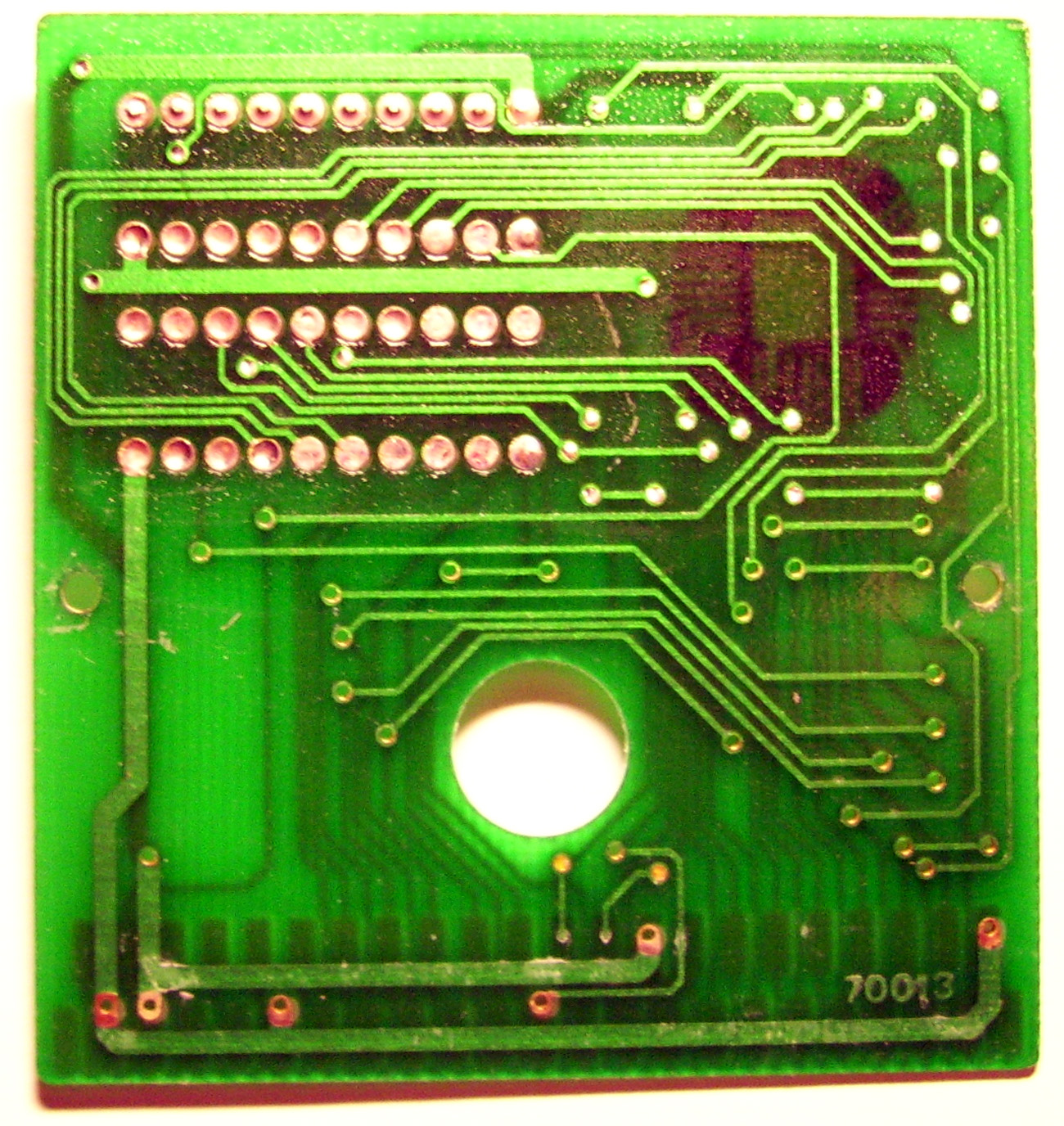

PCB design Model:
70013
Manufacturer:
Third Party

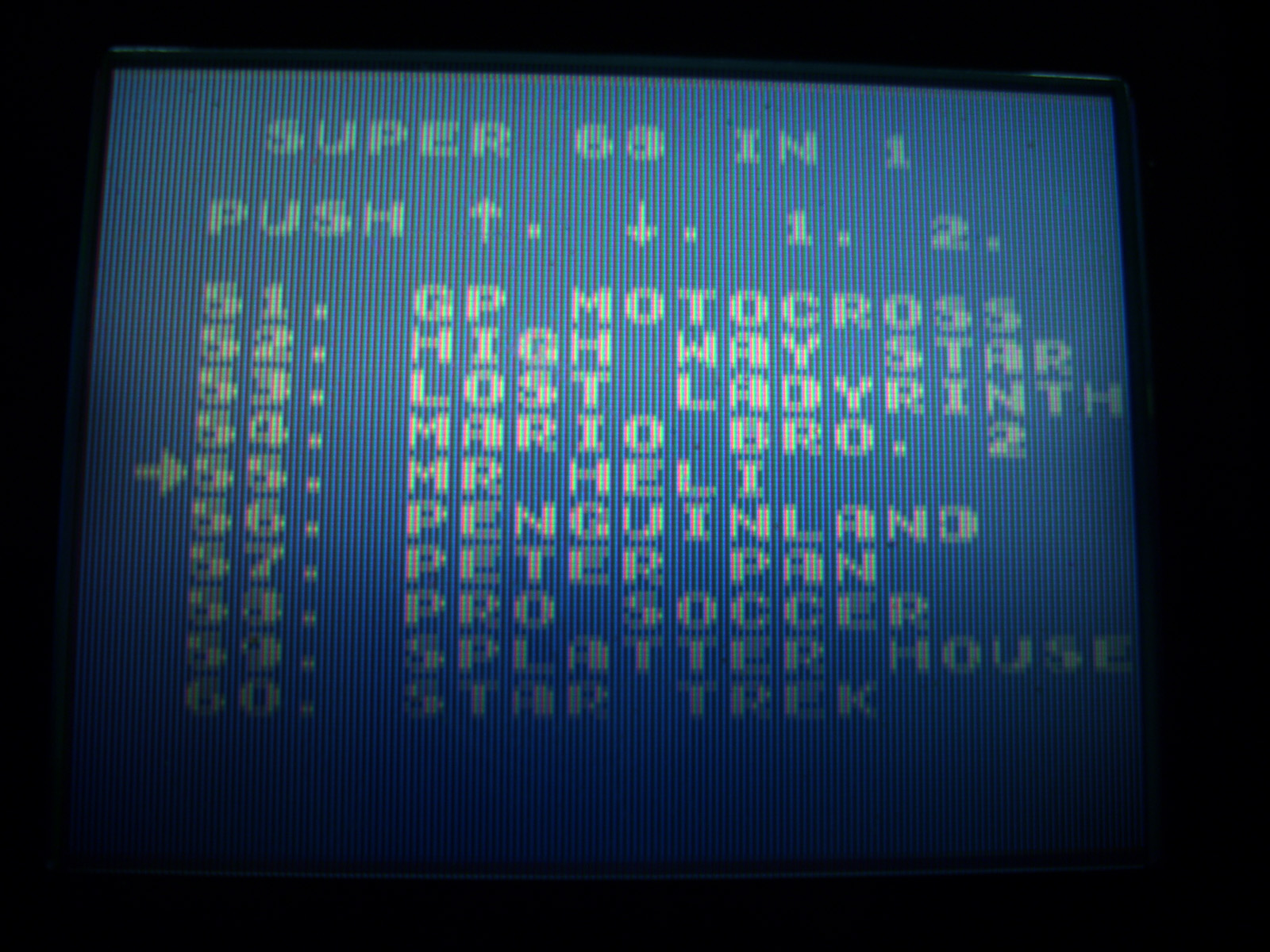

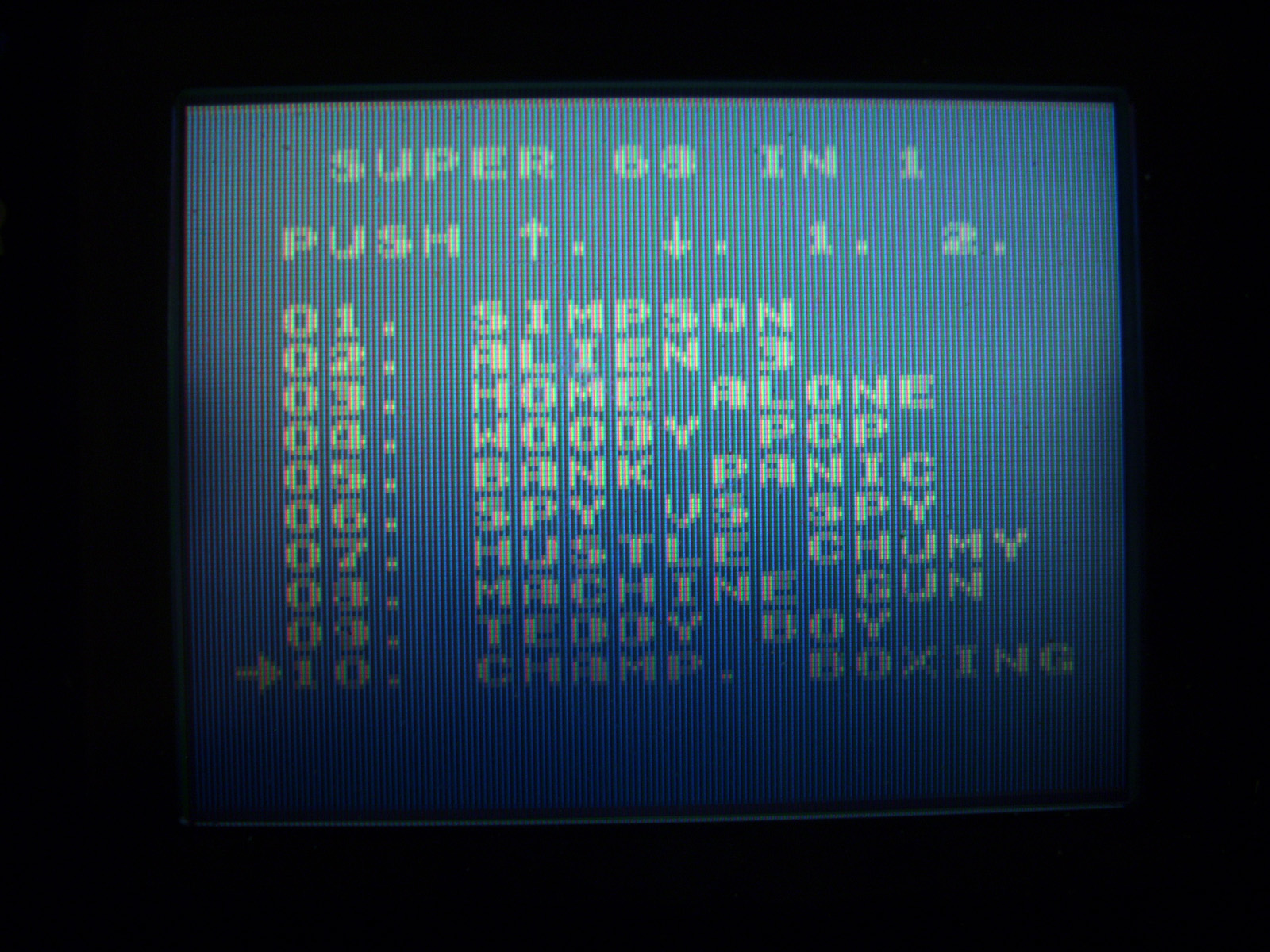

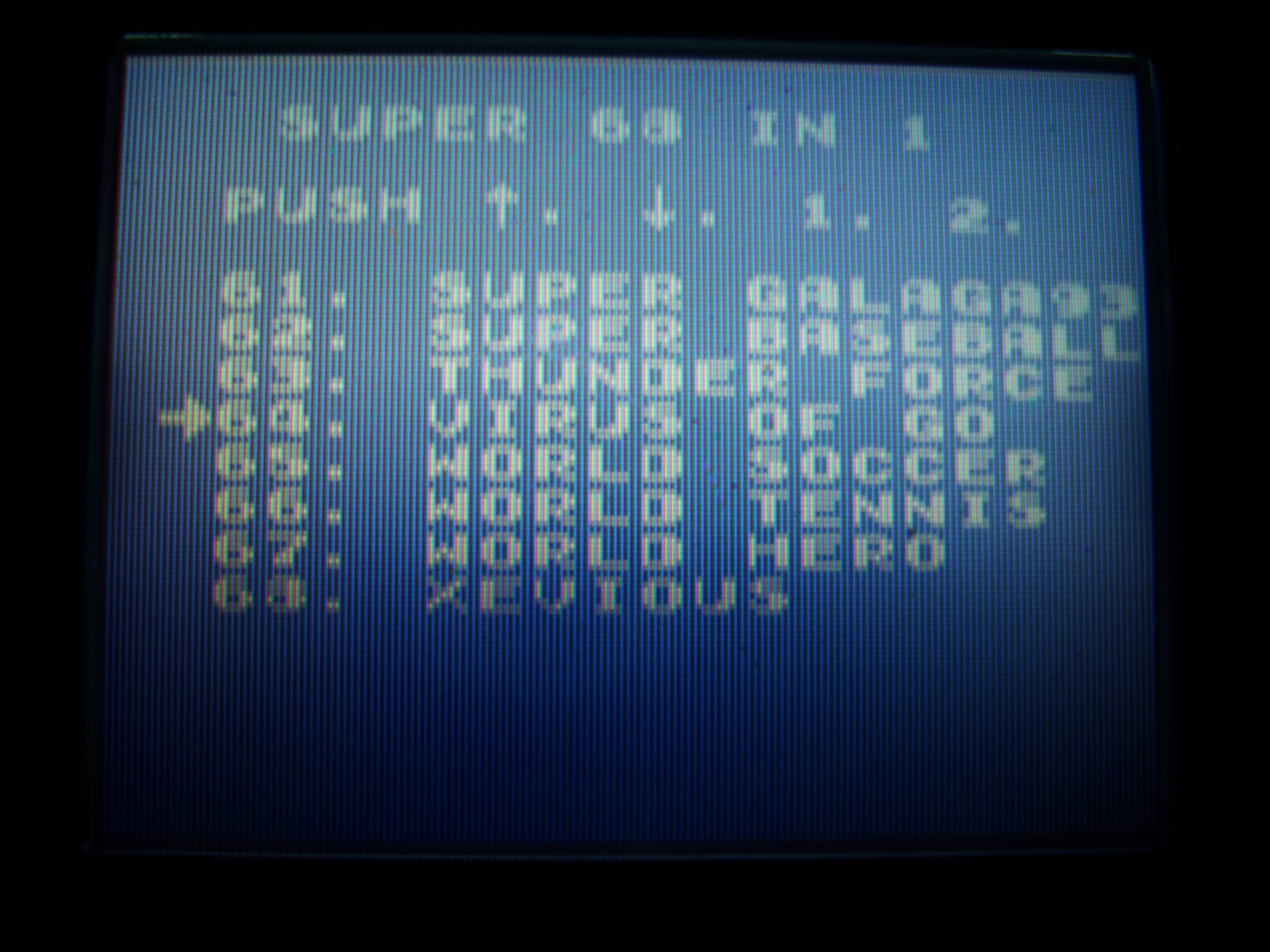

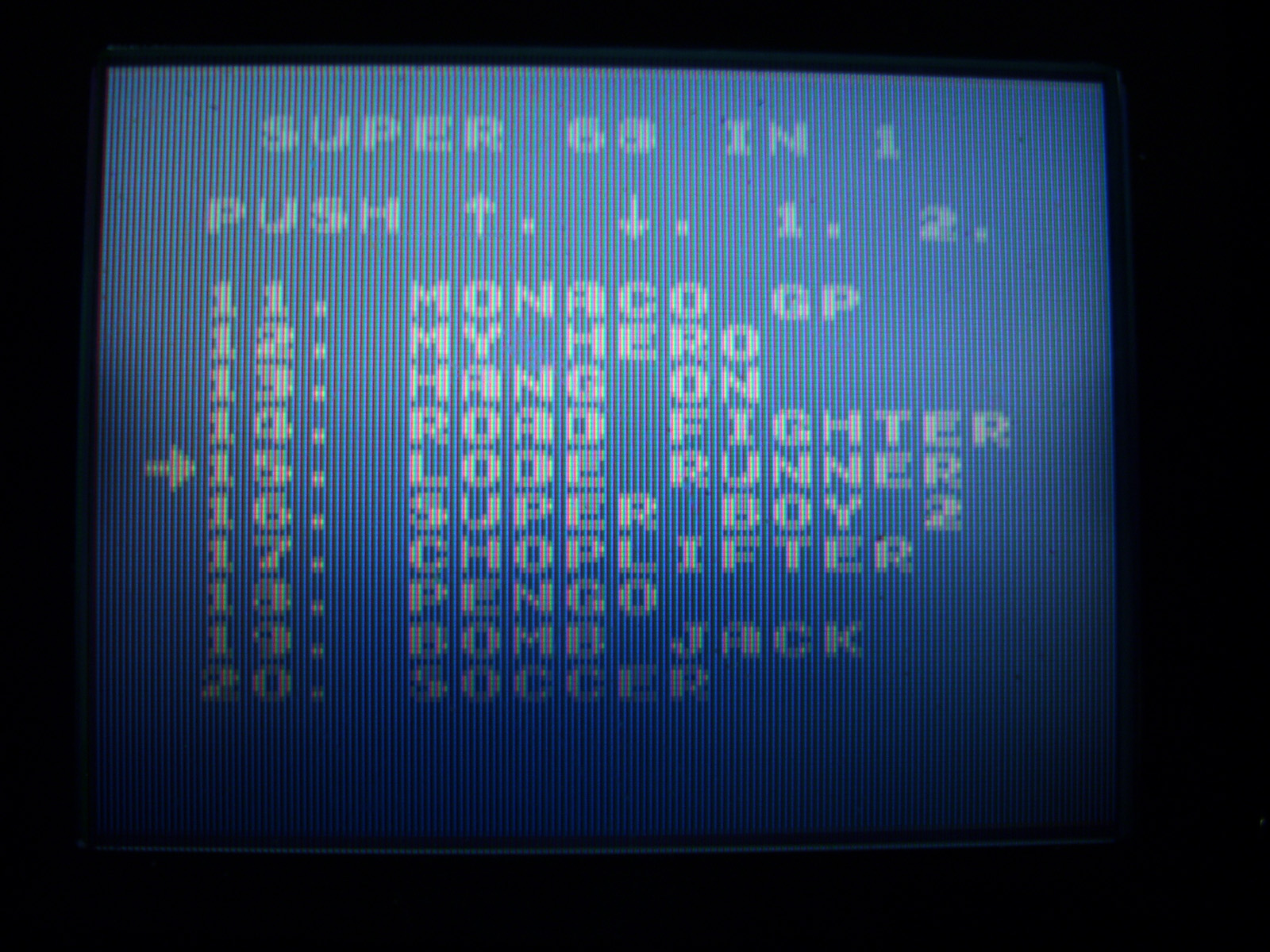

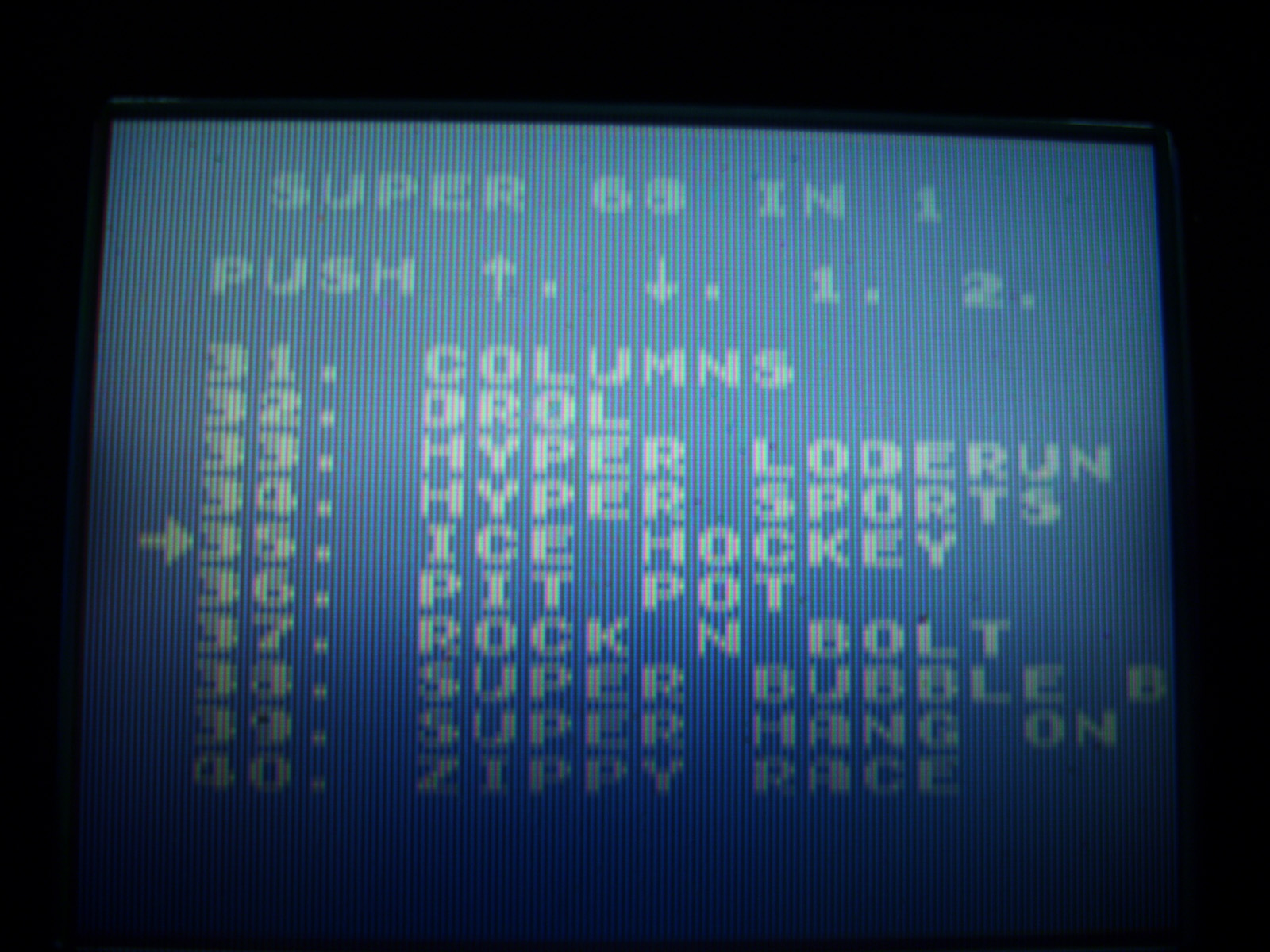

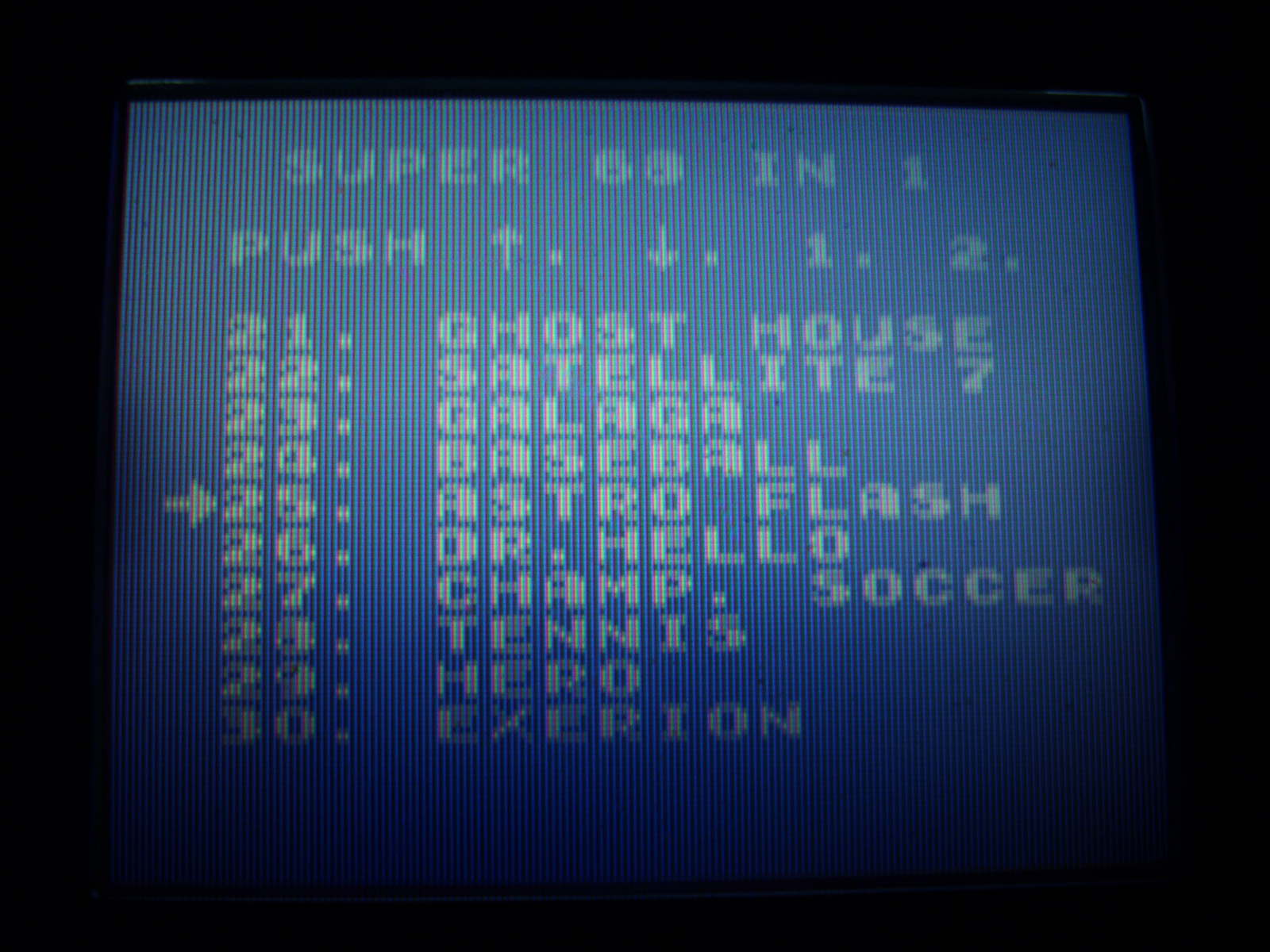

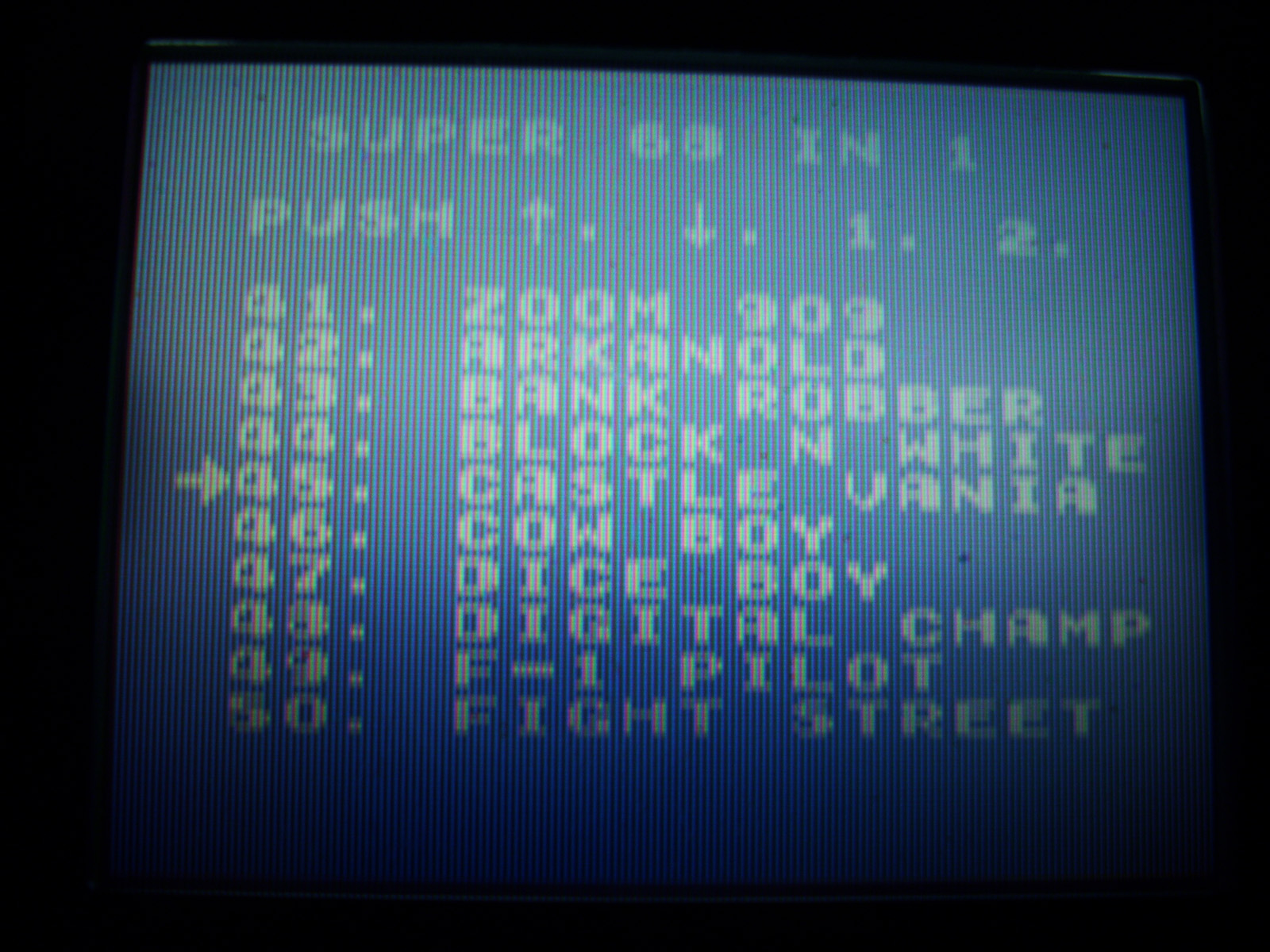

Super 68 in 1 - Game Select menu:

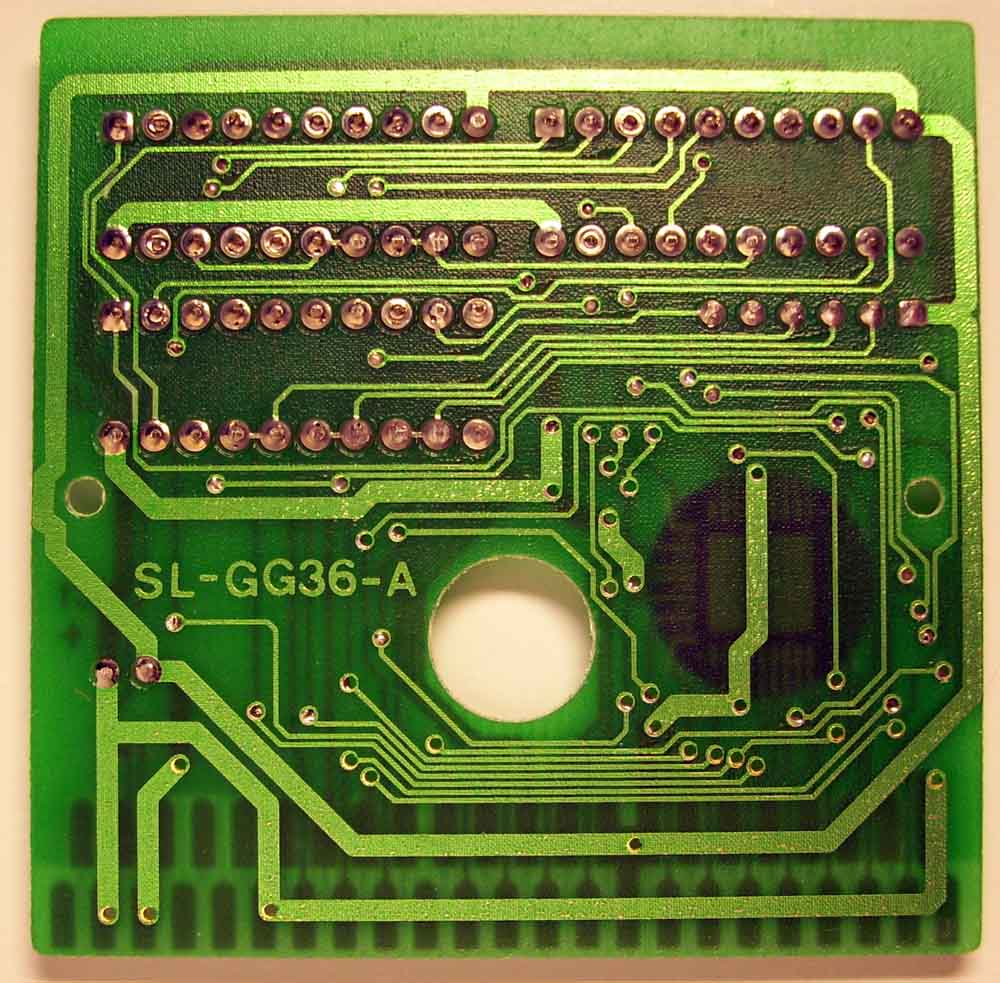

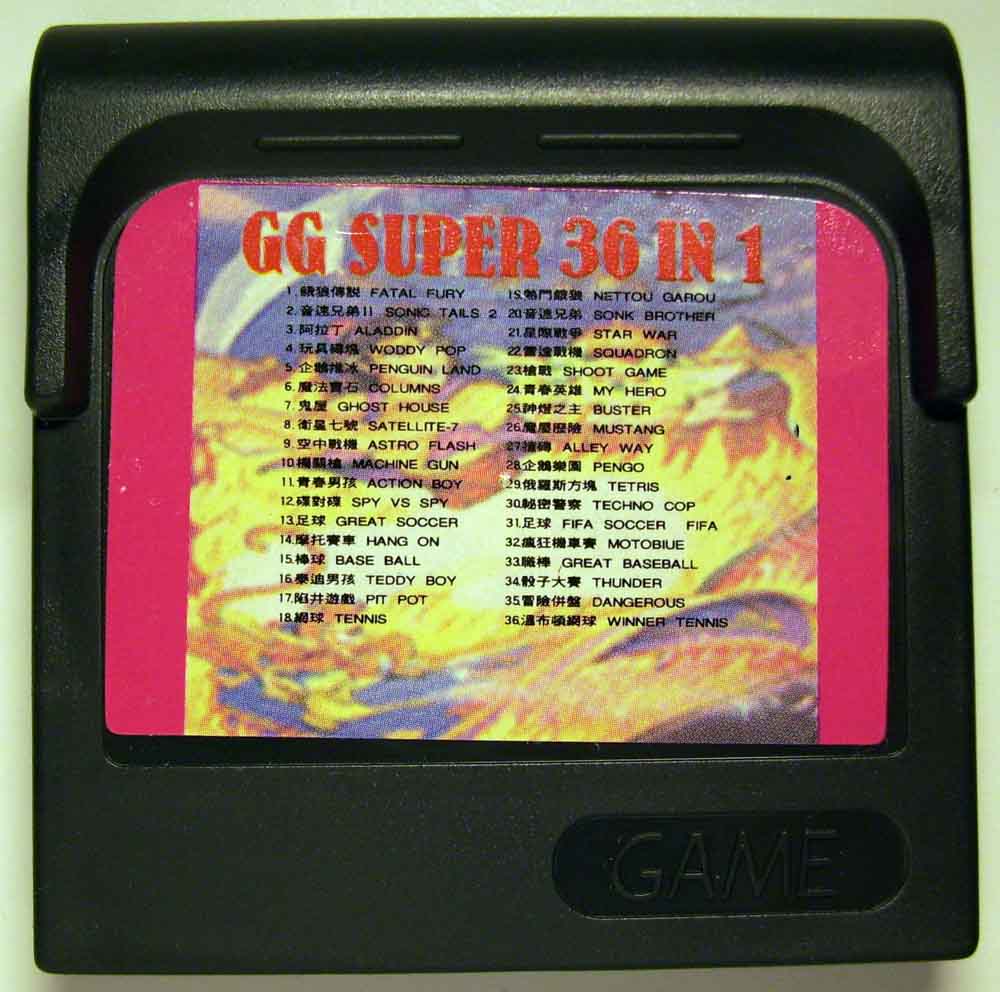

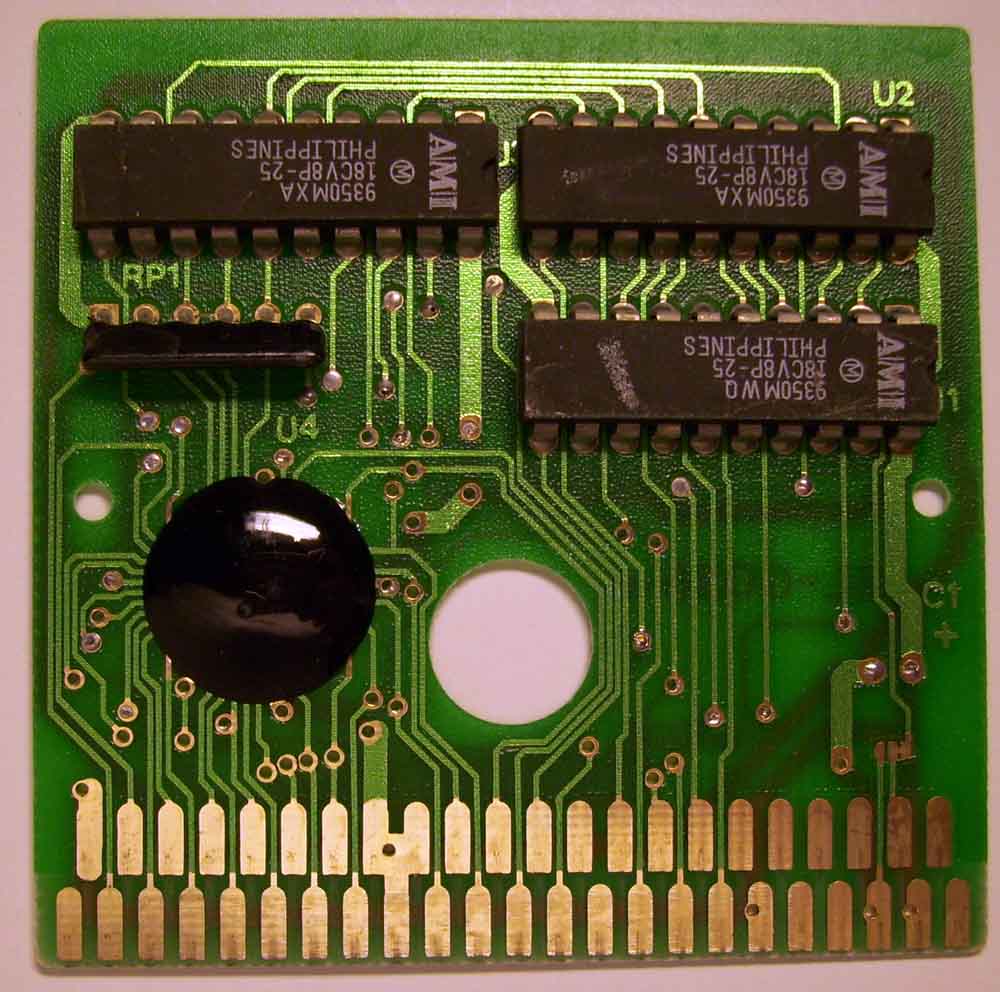

Game Name: GG Super 36 in 1 (Multi-Cart)
Cartridge Memory size:
Unkown
ROM ID:
Epoxy Coated Semi-Conductor
Memory Mapper:
Custom PAL 18CV8P-25 (x3)
PCB design Model:
SL-GG36-A
Manufacturer:
Third Party



Click the Above Thumbnails for Hi-Res version.
